EV series of electromagnetic vibration testing system simulate the
vibration environment under the laboratory condition, and test the
impact strength as well as reliability of various vibration test
applications. In the laboratory, with the aid of vibration testing
system, simulations of reproduction of sinusoidal, random, resonant
search and dwell, classical shock and road models, etc. can be
achieved. It is essential for product quality assurance, new
product research and development.
EV series of electromagnetic vibration testing system is specially
designed to meet the need for long time operation. Vertical and
horizontal vibrations can be achieved by the installation of
vibration resistant base. The standard platform is equipped with
high efficiency airbag shock isolation device, so that the
vibration transmitted to the building can be minimized. There is no
need for additional foundation in most of the cases.
A complete set of vibration testing system is composed of shaker,
power amplifier and vibration measuring control system, in
accordance with the relevant national and international standards
(such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS,
etc.) to provide technical support for establishing product quality
inspection.
Features:
- Strength of the suspension system and linear motion guiding, strong
carrying capacity, good guiding functions, high stability.
- Perfect performance on amplitude variation.
- High efficient on D Class power conversion, 3 - Sigma peak current,
provide the optimization of power consumption and minimum harmonic
distortion.
- Rapid self-test diagnostics and chain safeguard, high high safety
and reliability
- Air gasbag isolation damping device realize the the vibration table
with no need for special foundation. Perfect reappearance vibration
waveform and the reduction of vibration transmission
- Different application on the vertical and horizontal tables.
- Simple operation for the controller.

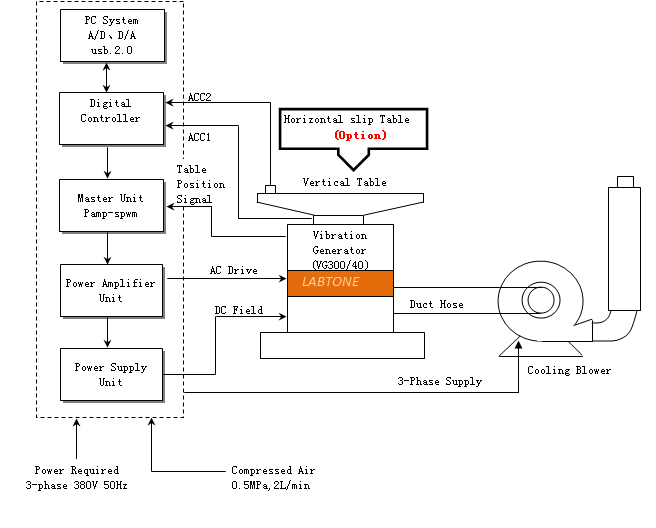

Working Principle:
Specifications: EV103-EV220
| Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/25 | VG300/40 | VG600/25 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 25 | 38 | 25 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 |
| Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling |
| Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling |
| Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
Utility
Requirements | 3-phase AC380V ±10% 50Hz |
| Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35 |
