High Frequency Laboratory Vibration Test Shaker Table For
Connectors / Electronics
The purpose of vibration testing is to make a series of
controllable vibration simulation in lab, no matter generated by
natural or man-made vibration environment; such as waves, tidal
flaps, wind, earthquake or rain and so on. It is to test if the
product is capable of sustaining the vibration environment exerted
from transporting or usage along its effective life cycle; and
certify the standard of design & functional requirement of product.
The value of vibration testing is to confirm the reliability of
products and effectively screen out the bad products in factory;
avoiding damages occurred at arrival; and to assess the failure
analysis on the non-performing products; expecting to reach a high
standard, high-reliability products. The vibration test stresses on
the continuity and fatigue; and contributes to the understanding of
product’s status under vibration circumstance in a normal
environment; and avoids the product’s unpredictable damage caused
under certain vibrating frequency for a long time.
Vibration testing system Applications: automotive,electronics,aerospace,vessel,telecommunication,optoelectronics
,instrument etc.
Features:

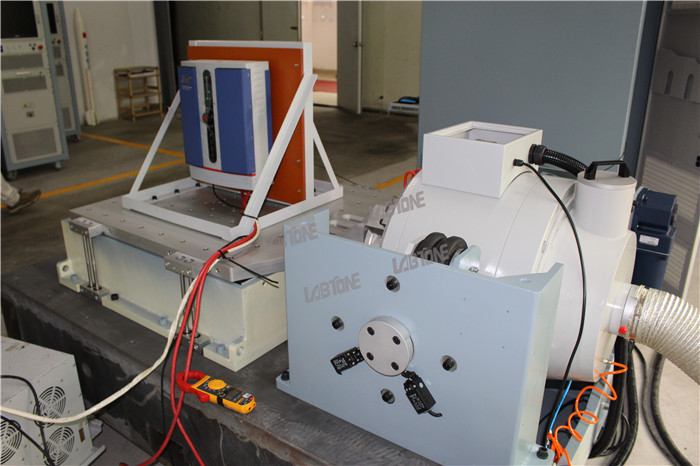

The electromagnetic vibrator is associated by the shaker, high
power amplifier and multi-functional controller. If conforms to all
military, national and commercial vibration testing specifications
and is an essential tool for modernized product design, production,
QC & QA works. Using it would make your product be the best. The
vibration response bandwidth is big and control precision is high;
able to simulate all waveforms and specifications; easy to control;
good extendibility and easy to maintain.
- Coil structure earns Taiwan & USA patents.
- Slip table is driven by linear low-noise hydraulic pump.
- Side & bottom plates are made of cast steel; own the feature of
high stiffness and low resonance.
- Machine body is under air-bellow & hydraulic damper protection; no
anchor required.
- Machine body is stable and won’t influence floor structure or
interfered by external vibration source..
Specifications:
| Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 | | Vibration Generator | VG300/25 | VG300/40 | VG600/25 | VG300/50 | VG1000/50 | VG2000/50 | | Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 | | Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 | | Max. Displacement (mmp-p) | 25 | 38 | 25 | 50 | 50 | 50 | | Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 | | Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 | | Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 | | Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 | | Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 | | Cooling Method | Forced Air Cooling | | Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 | | Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 | | Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k | | Cooling Method | Forced Air Cooling | | Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 | | Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 | Utility
Requirements | 3-phase AC380V ±10% 50Hz | | Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35
|
|
Our Service:
1,12 months warranty, lifelong maintenance. If any quality problems
on our side occured in this period. we promise we will give you a
reply within 48 hours and solution provide within 3 working days.
We can offer operation video and English operation muanual. We can
provide video-conference. If customers require on-site service,the
transport and travel expense shall be borne by customer.
2,Help choose right model with series of service
3,Customization service-OEM,Design service,Buyer lable
4,Cooperate with measuring if need the third party verification
