50kN Vibration Testing Shakers And Exciters Meet Fedex PackageTesting Standard

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	EV250
Certification :	CE / ISO
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	15 Sets / Month
Delivery Time :	45 Working Days

Add to Cart

Product Details
Company Profile

50kN Vibration Testing Shakers And Exciters Meet Fedex PackageTesting Standard

50kN Vibration Testing Shakers And Exciters Meet Fedex PackageTesting Standard

Applicable Standards:

MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Key Applications:

Automotive parts and systems - qualification testing
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screening

Features:

Armatures diameters from 320 mm (12.6 in) to 450 mm (17.7 in) with metric or American pcd.
Internal load support is standard
Active armature suspension system
Standard body isolation and guidance system designed to eliminate the use of a seismic base
Useful vibration control frequency range from 2 to 3000 Hz
Some systems available with 76 mm (3 in) displacement
High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
Rapid self-test diagnostics and chain safeguard, high high safety and reliability
Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
Different application on the vertical and horizontal tables.
Simple operation for the controller.

Specifications: EV232-EV330

Model	EV232	EV240	EV250	EV260	EV320	EV330
Vibration Generator	VG300/25	VG4000/50	VG5000/50	VG6000/50	VG2000/76	VG3000/76
Frequency(Hz)	2-2500	2-2500	2-2500	2-2500	2-3000	2-2500
Max Exiting Force(kg.f)	3200	4000	5000	6000	2000	3000
Max. Displacement (mmp-p)	50	50	50	50	76	76
Max. Acceleration(g)	100	100	100	100	80	80
Max. Velocity(cm/s)	200	200	200	200	200	200
Payload(kg)	500	800	1000	1000	1000	1000
Armature Mass(kg)	30	40	50	50	25	35
Armature Diameter(mm)	φ400	φ400	φ450	φ450	φ320	φ320
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	2000	2500	3500	3800	2000	3000
Vibration Generator Dimension LWH(MM)	1400900 1100	1400980 1100	16001120 1340	160011201340	85010001100	110013001440
Power Amplifier	Amp35k	Amp50k	Amp60k	Amp70k	Amp30k	Amp45k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	550	600	800	1000	550	600
Power Amplifier Dimension LWH(MM)	800550 1920	800550 1920	800550 1920	8005501920	8005501920	8005501920
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	45	64	85	95	40	60

Company Introduction:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

We sincerely invite you to visit our factory.

Customer Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.

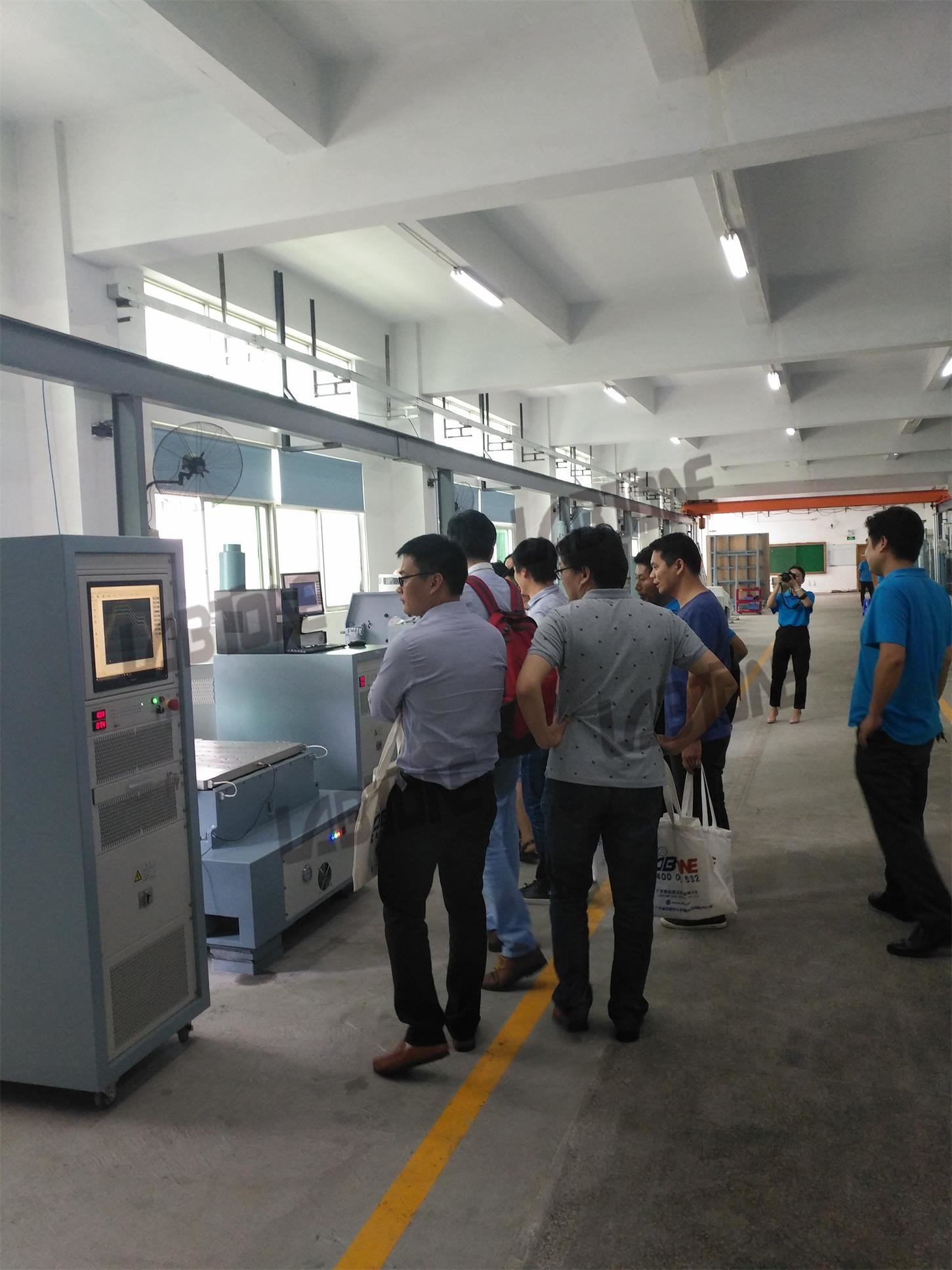

Customer visiting:

50kN Vibration Testing Shakers And Exciters Meet Fedex PackageTesting Standard

Round Table:

50kN Vibration Testing Shakers And Exciters Meet Fedex PackageTesting Standard
