Acceleration 100g Electrodynamic Shaker Vibration Test Equipment
with IEC 61373
Vibration test Equipment Discription
Vibration Testing Equipment: swept sine, random, sine on random,
resonance search, fixed frequency
A complete set of vibration testing system is composed of shaker,
power amplifier and vibration measuring control system, in
accordance with the relevant national and international standards
(such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS,
etc.) to provide technical support for establishing product quality
inspection
Vibration testing system Applications:
automotive,electronics,aerospace,vessel,telecommunication,optoelectronics
,instrument etc
Vibration Testing Equipment Main Features
1) Rugged suspension system and linear motion guiding, strong
carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic
stiffness, strong carrying capacity, perfect performance on
amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current,
low power consumption and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety
reliability
5) Airbag shock isolation device for vibration platform without the
need of additional foundation, perfect reproduction of vibrational
wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different
applications
7) Simple controller operation
Vibration Testing Equipment Capabilities
- Sine: 1,000 kgf (peak)
- Random: 1,000 kgf (rms)
- Shock: 2,000 kgf (peak)
- Frequency range: 2 Hz to 3000 kHz
- Maximum Velocity: 2.0m/s
- Maximum Acceleration: 100 G (half sine) with a bare armature
- Maximum payload: 300 kg
- Maximum displacement: Shock: 51 mm (p-p), Continuous: 40 mm (p-p)
Vibration Testing Equipment Specification:
Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 |
Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 |
Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 |
| 25 | 38 | 25 | 50 | 50 | 50 |
Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 |
Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 |
Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 |
Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 |
Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 |
Cooling Method | Forced Air Cooling |
Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 |
Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 |
Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k |
Cooling Method | Forced Air Cooling |
Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 |
Power Amplifier Dimension L*W*H(MM) | 800*550*1250 |
Utility Requirements | 3-phase AC380V ±10% 50Hz |
Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35 |
Head Expanders
Size(mm): 300 x 300-1500x1500
Material: Aluminium /Magnesium
Expansion platform is made of magnesium alloy to provide expansion
for the armature. With Reasonable and scientific design, the
platform can achieve a testing frequency of 2 kHz. Specific
microstructure provides reasonable vibration damping, and minimizes
the amplification factor of high frequency resonance.
Fixture / Cube
Material : Aluminium /Magnesium
According to customer's actual demand,we can offer diferent shapes
of fixture,such as three-dimensional square,L and T shape.
Pre-Sales Service
* Technical consultation: test method, laboratory planning and
suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.

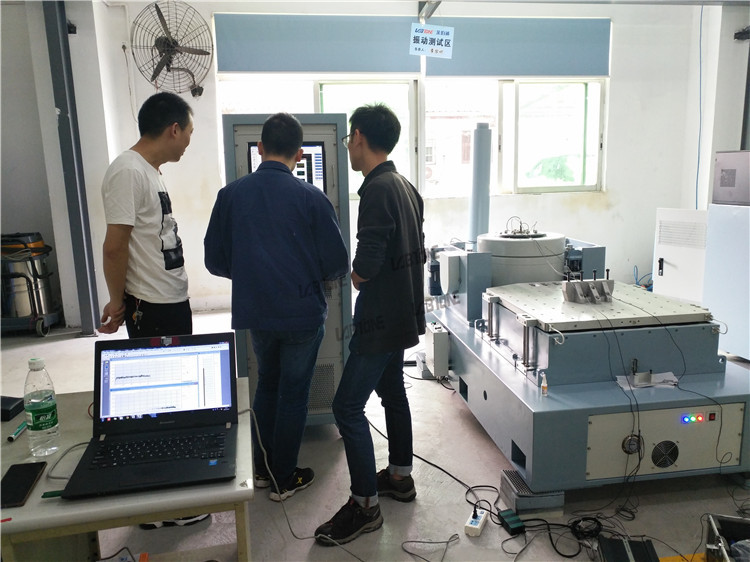

The third party inspection organization came to inspect the
finished products
