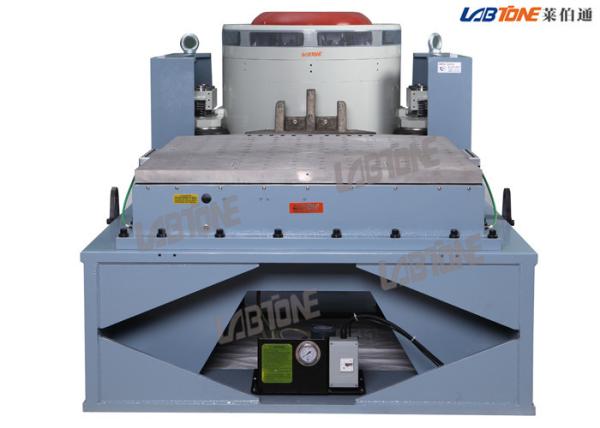

50kN Force Electrodynamic Shaker Vibration Test Machine For
Vibration Shock Testing
Electrodynamic Shaker Capabilities
- Sine: 5,000 kgf (peak)
- Random: 5,000 kgf (rms)
- Shock: 10,000 kgf (peak)
- Frequency range: 2 Hz to 2500 kHz
- Maximum Velocity: 2.5m/s
- Maximum Acceleration: 71G (half sine) with a bare armature
- Maximum payload: 1000 kg
- Maximum displacement: Shock: 100 mm (p-p)
Product Application
Vibration test is a process of exciting or shocking some part or
device to observe its reaction in real environment. Vibration test
is widely applied in many fields, ranging from circuit board,
airplane, ship, rocket, missile, automobile, household appliance
and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and
provide you with the quality certificates of products according to
national and international standards, including GB, GJB, UL, JIS,
DIN, ISO, BS, MIL, IEC and ASTM standards.
Type Selection Formula of Vibrator and Structural Diagram of
vibration shaker
① Test conditions provided by your company;
② Test types: sine sweep; random;
③ Frequency response range: 2 to 3000Hz
④ Formula: A(g)=(2πf)2Dcm/980≒A=0.002DmmF2 D=A/0.002F2
F=M(kg) ×A(g)
Specification:
Model | EV340 | EV350 | EV420 | EV430 | EV440 | EV450 |
Vibration Generator | VG4000/76 | VG5000/76 | VG2000/100 | VG3000/100 | VG4000/100 | VG5000/100 |
Frequency (Hz) | 2-2500 | 2-2500 | 2-3000 | 2-2500 | 2-2500 | 2-2500 |
Max Exiting Force(kg.f) | 4000 | 5000 | 2000 | 3200 | 4000 | 5000 |
Max. Displacement (mmp-p) | 76 | 76 | 100 | 100 | 100 | 100 |
Max. Acceleration (g) | 80 | 100 | 90 | 71 | 66 | 71 |
Max. Velocity(cm/s) | 200 | 200 | 200 | 250 | 250 | 250 |
Payload(kg) | 1000 | 1000 | 500 | 500 | 800 | 1000 |
Armature Mass(kg) | 50 | 50 | 23 | 45 | 60 | 70 |
Armature Diameter (mm) | φ440 | φ440 | φ320 | φ400 | φ445 | φ445 |
Cooling Method | Forced Air Cooling | 460 | 720 | 920 | 1100 | 1600 |
Vibration Generator Weight(kg) | 2000 | 2500 | 3500 | 3800 | 2000 | 3000 |
Vibration Generator Dimension L*W*H(MM) | 1400*900*1100 | 1400*980*1100 | 1600*1120*1340 | 1600*1120*1340 | 850*1000*1100 | 1100*1300*1440 |
Power Amplifier | Amp35k | Amp50k | Amp60k | Amp70k | Amp30k | Amp45k |
Cooling Method | |
Main Features
1) Rugged suspension system and linear motion guiding, strong
carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic
stiffness, strong carrying capacity, perfect performance on
amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current,
low power consumption and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety
reliability
5) Airbag shock isolation device for vibration platform without the
need of additional foundation, perfect reproduction of vibrational
wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different
applications
7) Simple controller operation
Pre-Sales Service
* Technical consultation: test method, laboratory planning and
suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
