LABTONE Vibration Testing Machine Mechanical Shaker Vibration Table For Battery Test

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	EV203
Certification :	CE,ISO
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

LABTONE Vibration Testing Machine Mechanical Shaker Vibration Table For Battery Test

Vibration Testing Machine Mechanical Shaker Vibration Table For Battery Test

Product Application

Vibration Exciter Capabilities

Sine: 300 kgf (peak)
Random: 300 kgf (rms)
Shock: 600 kgf (peak)
Frequency range: 2 Hz to 3000 kHz
Maximum Velocity: 2.0m/s
Maximum Acceleration: 100G (half sine) with a bare armature
Maximum payload: 120 kg
Maximum displacement: Shock: 40 mm (p-p)

Vibration Exciter Main Features

1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Vibration Exciter Specification:

Model	EV103	EV203	EV106	EV206	EV210	EV220
Frequency(Hz)	2-4000	2-2500	2-3000	2-3000	2-3000	2-2500
Max Exiting Force(kg.f)	300	300	600	600	1000	2000
Max. Displacement (mmp-p)	25	38	25	50	50	50
Max. Acceleration(g)	100	100	100	100	100	100
Max. Velocity(cm/s)	200	120	180	200	200	200
Payload(kg)	110	120	200	200	300	400
Armature Mass(kg)	3	3	6	6	10	20
Armature Diameter(mm)	φ150	φ150	φ200	φ200	φ240	φ320
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	460	460	720	920	1100	1600
Vibration Generator Dimension LWH(MM)	750560670	750555670	800600710	800600710	845685840	12008701100
Power Amplifier	Amp3k	Amp3k	Amp6k	Amp6k	Amp12k	Amp22k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	250	250	320	320	350	500
Power Amplifier Dimension LWH(MM)	8005501250
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	8	9	18	20	25	35

Company Profile:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty and are available directly from our factory in Dongguan, China. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having a qualified staffs and experts to solve your problems

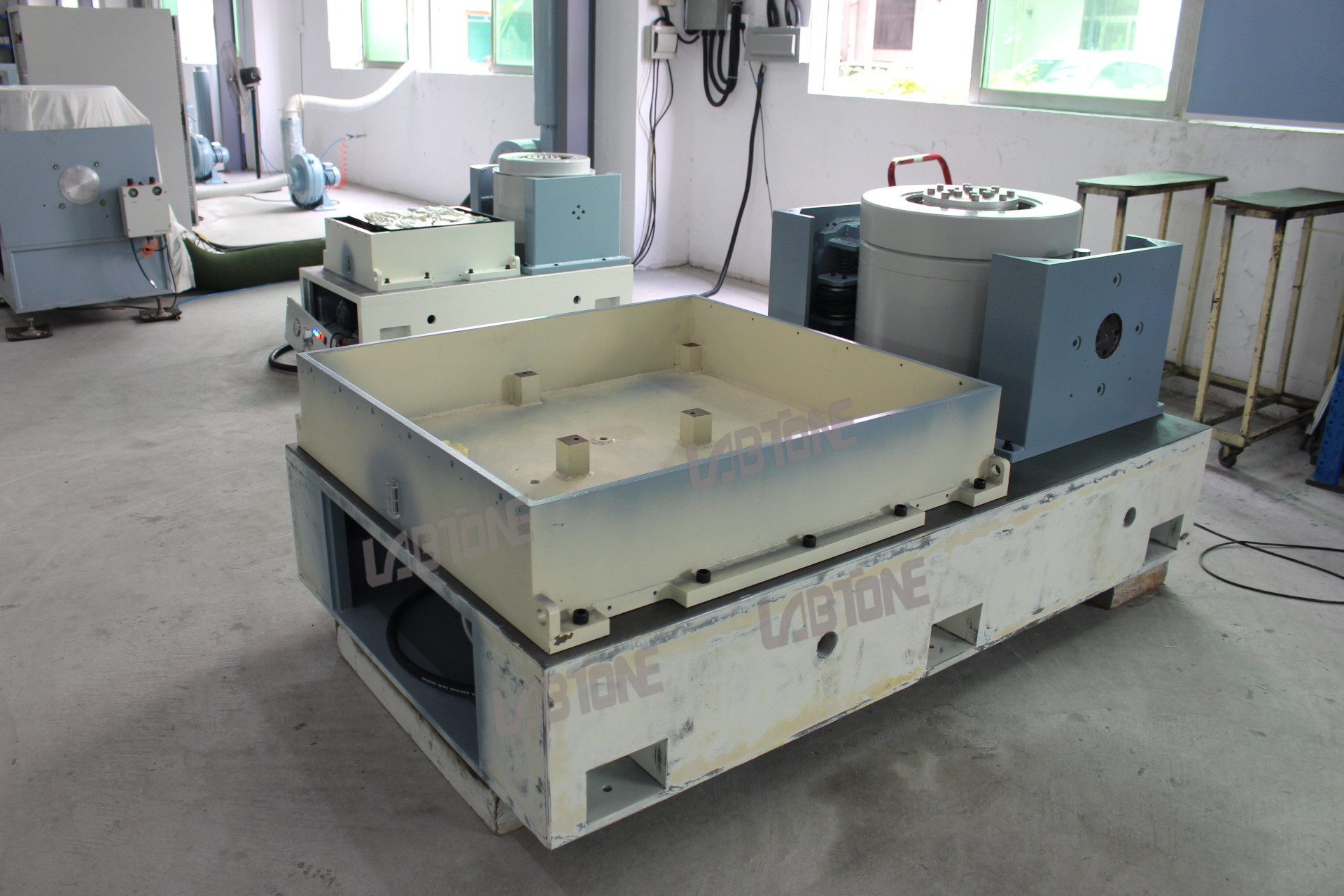

Detail Images:

LABTONE Vibration Testing Machine Mechanical Shaker Vibration Table For Battery Test
