Product Application

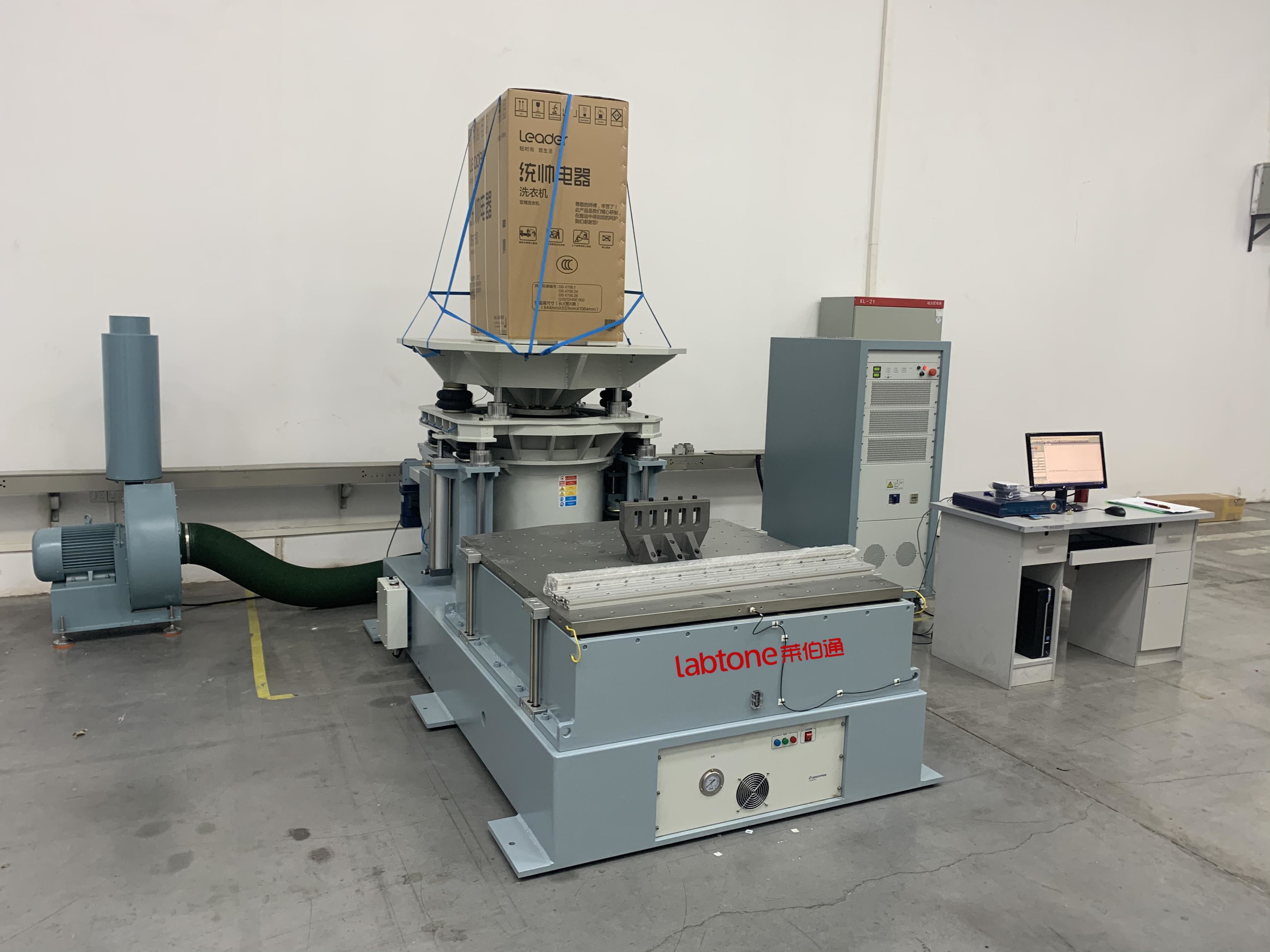

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Test requirements and model selection guide

To choose a suitable vibration test system, the most important thing is to know the exciting force required to perform the vibration test. To evaluate and calculate the exciting force, the following test specifications should be known:

• Clear Testing Requirements
• Frequency (Frequency Range)
• Maximum Acceleration
• Maximum Displacement
• Maximum Velocity
• Specimen Weight and Fixation

Main Features

1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.

2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.

3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.

4) Quick self-diagnosis with safety interlock, high safety reliability

5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance

6) Horizontal and vertical expansion platforms for different applications

7) Simple controller operation
