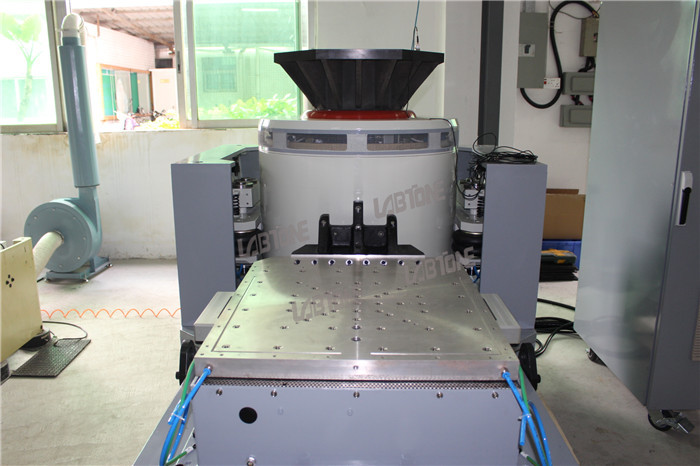

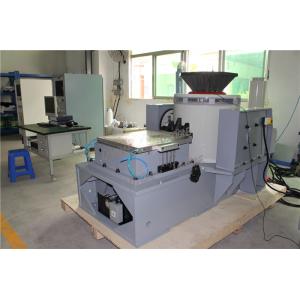

Triaxial Vibration Test Machine Vertical & Horizontal Vibration
Test Table With ISTA Standard
Product Application
Labtone can offer you the whole vibration and testing proposal, and
provide you with the quality certificates of products according to
national and international standards, including GB, GJB, UL, JIS,
DIN, ISO, BS, MIL, IEC and ASTM standards.
Type Selection Formula of Vibrator and Structural Diagram of
vibration shaker
In selecting a suitable vibration test system, It is important to
properly define the required exciting force , for performing a
vibration test.
Take the following test conditions into account and calculate the
required exciting force to judge raged capabilities of the
vibration test system.
Would you please let us know the following test conditions ?
Frequency range ?
Max. acceleration ?
Mass of test article and fixture ?
Max. size of test sample and fixture ?
Electrodynamic Shaker Specifications:
| Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/25 | VG300/40 | VG600/25 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 25 | 38 | 25 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 |
| Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling |
| Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling |
| Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
Utility
Requirements | 3-phase AC380V ±10% 50Hz |
| Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35
|
Main Features
1) Rugged suspension system and linear motion guiding, strong
carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic
stiffness, strong carrying capacity, perfect performance on
amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current,
low power consumption and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety
reliability
5) Airbag shock isolation device for vibration platform without the
need of additional foundation, perfect reproduction of vibrational
wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different
applications
7) Simple controller operation
Customer Services
Presales:
- Technical consultation: test method, laboratory planning and
suggestion.
- Equipment selection: selection scheme, FAQ.
- Product testing scheme.
In-Sales:
- Customer communication and progress report.
- Guidance for pre-installation preparation, equipment commissioning
and test run.
- Calibration (when Third Party’s verification is required).
After-Sales:
- Technical training: operation of equipment, daily maintenance,
common fault diagnosis and troubleshooting.
- Scheduled on-site service: Detection of problem as soon as possible
in order to eliminate equipment and anthropogenic hazards. This is
to ensure long term and stable equipment operation as well as
delivery of latest technical information.
- Technical support: special paid services are provided according to
customer’s needs.
