LAB Drop Testers, Drop Shock Package Testers, Drop Test Equipment
Manufacturer
Product description

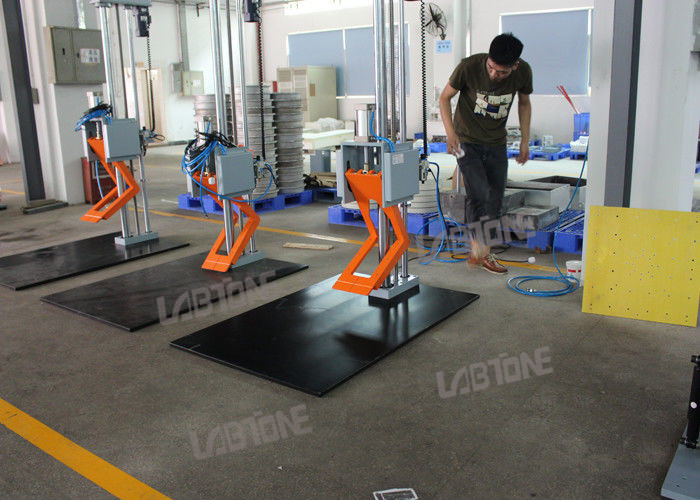

Packaging drop test Machine is used to determine the ruggedness of
packages and the effectiveness of their interior cushioning when
exposed to impact during material handling and shipping.
High Accuracy Drop Tester for Packaged Freight specifications
| Model | DT150 | DT200 |
| Drop height range (mm) | 300---1500 | 300----2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa |
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 |
Functions and Features
1 Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial
standards.
2 Can perform surfaces, corner and edge drops.
3 Precise guiding system and pneumatical driving;
4 Unique swing arm structural design, escape acceleration of swing
arm greater than 3G.;
5 With double column guide, hydraulic buffer will absorb the
dynamic force of the swing arm, such that the movement is stable,
reliable with low noise
6.Self-locking screw in lifting mechanism to prevent accidental
downward glide.
7.Automatic pneumatic interlocks to prevent abnormal detachment of
swing arm.
8.Extensible support bracket and steel base plate.
Packaging
Simulation Animatronic Customer Triceratops are covered with air
bubble film before put them into the wooden case,which not only has
good shock absorption, impact resistance, heat sealing and also has
the advantages of nontoxic, odorless,moisture corrosion, good
transparency etc
FAQ
1. Q: What is your warranty ?
- 12 months product warranty.Free components will be provided if any
performance failure occurs within 12 months caused by non-human
damage.
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to
video for you.
3. Q: Is the machine made in your own plant ?
- Yes, welcome to visit our plant(factory), also we support OEM and
ODM.
4. Q: What about the quality ?
- Each instruments must be carried out 100% quality examination and
test when shipping and delivery goods.
- All of our machine are strictly according to CE & ISO standards.
