Mechanical Shock Tester Performs 150g 6ms For Battery Safety Test
with UN38.3 IEC62133
Product description
HSKT is the best Shock Machine to make sure the product,
smartphones, tablets, computers and others mobiles can withstand
shock. Apply high acceleration to computer's parts, Batteries ,
smart phones, tablets, laptop, cellular phones, and mobile products
for product fragility test.
The equipment conforms to such testing specifications as
GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, MIL-STD-202F,
IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
Max. Acceleration (G) | Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Square | | 150 | 150 | 150 | 100 | 100 | 100 | |
Pulse duration (ms) | Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | |
| Square | | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |
| Controller cabinet dimension(cm) | W55*D50*H80 |
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa |
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F
IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
| Model | HSKT10 | HSKT10D | G-HSKT15 | G-HSKT30 | G-HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
Max. Payload (kg) | 10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave |
| Acceleration Range(G) | 20~2000 (bare table) | 20~10000
(bare table) | 20~15000
(bare table) | 20~30000
(bare table) | 20~35000
(bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 |
Considerations When Selecting Shock Test Equipment
We ultimately recommend the most suitable system configuration for
every testing application based on Three important criteria:
- The size of your largest test item
- The Weight of your largest test item
- The performance capability needed to meet your testing needs
Each customer has unique requirements for their dynamic testing
equipment. It is important to know the size and weight of test
items to correctly configure the appropriate testing equipment. The
size of your largest test item will help determine the table
surface area. The maximum payload will help determine the shock
system performance category.
Shock testing levels vary significantly depending on the product
you are evaluating or the conditions you are simulating. The two
most important shock performance criteria are velocity change and
acceleration level. It is also important to know the shock pulse
waveforms—half sine, sawtooth, or trapezoidal
Customer Services
Presales:
- Technical consultation: test method, laboratory planning and
suggestion.
- Equipment selection: selection scheme, FAQ.
- Product testing scheme.
In-Sales:
- Customer communication and progress report.
- Guidance for pre-installation preparation, equipment commissioning
and test run.
- Calibration (when Third Party’s verification is required).
After-Sales:
- Technical training: operation of equipment, daily maintenance,
common fault diagnosis and troubleshooting.
- Scheduled on-site service: Detection of problem as soon as possible
in order to eliminate equipment and anthropogenic hazards. This is
to ensure long term and stable equipment operation as well as
delivery of latest technical information.
- Technical support: special paid services are provided according to
customer’s needs.

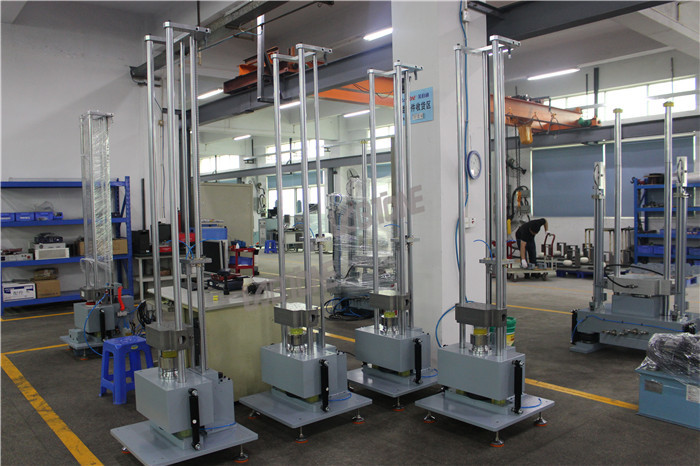

Workshop :
