High Frequency 6500Hz Small Vibration Testing Machine For University Research

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	ET30
Certification :	CE,ISO
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

High Frequency 6500Hz Small Vibration Testing Machine For University Research

Minitype Vibration Test System

With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Features

Apply to the calibration of high precision vibration meter, mechanical impedance test, vibration analysis of the vibration source.
Apply to the vibration test of various small and lightweight parts such as sensor, electronic, electric machines and etc.
Apply to the basic test of vibration engineering of educational equipment.

Equipment Configuration

Item	Configuration	Qty.
1.	Vibration shaker
	ET30 Shaker	1 set
2.	Digital switch power amplifier
	PA502E Power Amplifier	1 set
4.	Attached accessories
	connecting line	1 set
	Operation instructions, inspection report, certificate, maintenance manual, etc.	1 set
	Special tools	1 set

Vibration Test Machine Specification:

Model	NET-30
Shaker Unit	V30
Peak force[N] (fan is mounted at the bottom of the vibration shaker)	150
Peak force[N] (The blower is placed outside)	300
Frequency[Hz]	5~6500
Resonance frequency[Hz]	4800±5%
Maximum displacement [mm p-p]	12
Equivalent mass [kg]	0.45
Peak acceleration [g]	65
Weight[kg]	19
Payload[kg]	2
Install screw holes[ø mm]	4*M5
Armature size[ø mm]	50
Dimension[mmmmmm]	200265250

Power Amplifier	PA502E
Rated power	550VA
Frequency[Hz]	DC~20k
Maximum voltage [V]	55
Maximum current [A]	10
Signal input voltage	< 1.5 V_RMS
Noise-signal ratio	> 90 dB
Total harmonic distortion	< 1%
Weight[kg]	15Kg
Dimension[mm]	430300100
Maximum power consumption	820 VA
Power supply	AC 220V
Efficiency	>94%
defencive function	Over pressure, overcurrent, overtemperature, short circuit, over displacement

Vibration Test Machine Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales Service

Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.

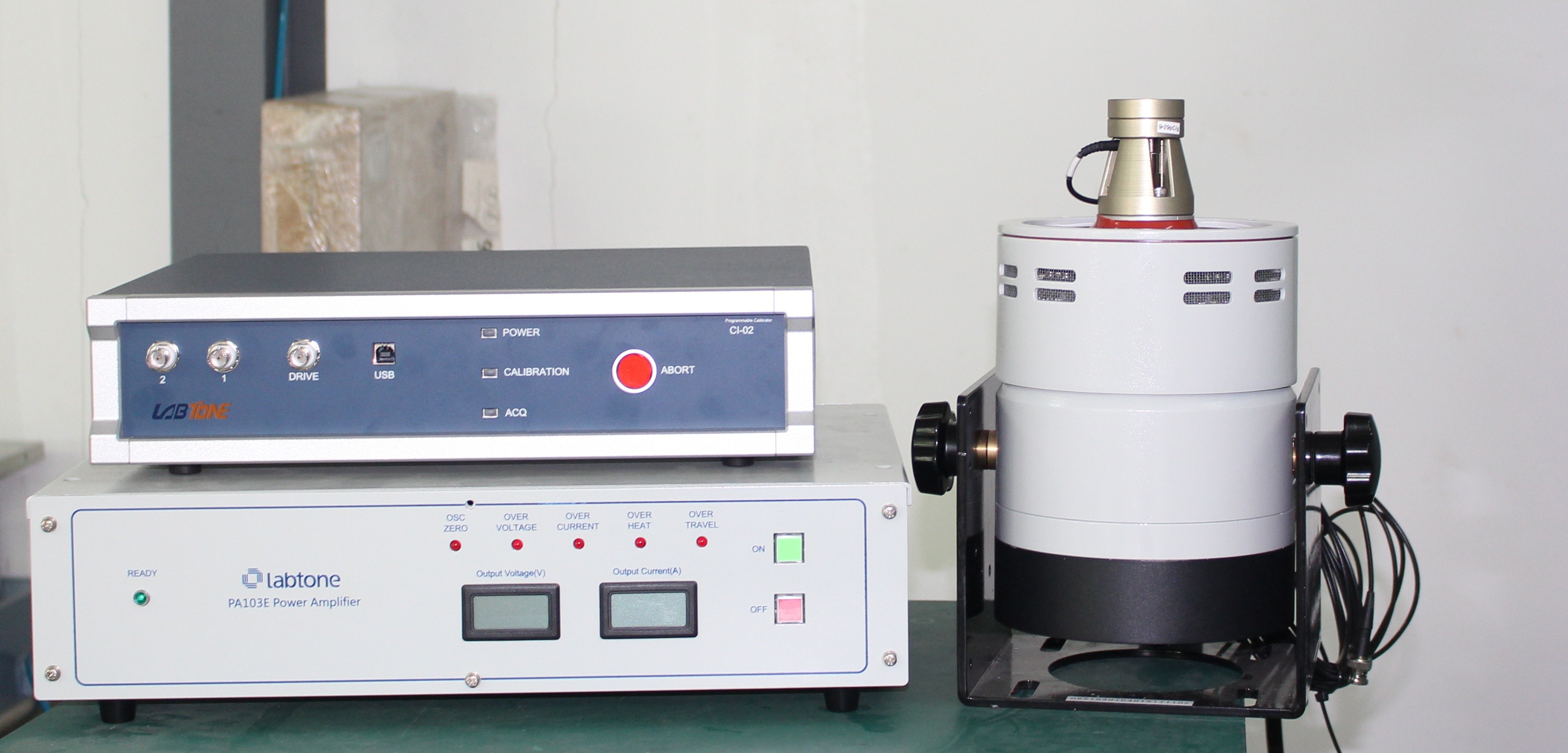

Detailed Pictures

High Frequency 6500Hz Small Vibration Testing Machine For University Research
