PCB Vibration Test , Battery Vibration Test Machine For Sine,
Random and Shock Test
Description
EV series of electromagnetic vibration testing system simulate the
vibration environment under the laboratory condition, and test the
impact strength as well as reliability of various vibration test
applications. In the laboratory, with the aid of vibration testing
system, simulations of reproduction of sinusoidal, random, resonant
search and dwell, classical shock and road models, etc. can be
achieved. It is essential for product quality assurance, new
product research and develo
Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 1-2500 | 1-3000 | 1-3000 | 1-2500 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 38 | 50.8 | 50.8 | 50.8 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling |
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling |
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
Utility
Requirements | 3-phase AC380V ±10% 50Hz |
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Applicable Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive, Electronics, Aviation, Large Ships, Military Industry,
Rail Transit, Potoelectronics, Measuring Instrument etc.
Features:
- Dual magnetic structure;
- Frameless armatures;
- Pneumatic load support;
- Rugged trunnion design with air isolation;
- Active armature suspension system;
- Small waveform distortion, high carrying capacity, good guidance
quality;
- Protection functions for safety interlock;
- Good compatibity with slip table head expander, climatic test
chamber, air isolation mounts, etc.
Working Principle:
Digital Vibration Controller
VCS series vibration controller has the full range of vibration
test function, which can achieve vibration tests, such as random,
sinusoidal sweep, resonance search and dwell, classical shock,
sinusoidal-random, random-random, narrowband random-sinusoidal,
shock response spectrum control, transient simulation, and road
spectrum simulation on electro-dynamic or hydraulic vibration
table. Control software is performed in Windows 7/8/10 with
friendly interface and convenient operation. At the same time, the
system also provides perfect testing process management, data
instructions and test report generation, making the test more
convenient and reliable.
Vibration control system adopts modular design and distributed data
processing program to carry out the expansion of the channel and
test function easily. Composed of 32-bit high speed DSP processing
structure, low noise circuit design technology, 24 bit A/D and D/A
hardware, high-speed USB2.0 data communication circuit. The control
software of the adaptive control algorithm is powerful, and
promotes the technical performance of vibrational control system to
a new level.
Packaging:
Simulation Animatronic Customer Triceratops are covered with air
bubble film before put them into the wooden case,which not only has
good shock absorption, impact resistance, heat sealing and also has
the advantages of nontoxic, odorless,moisture corrosion, good
transparency etc

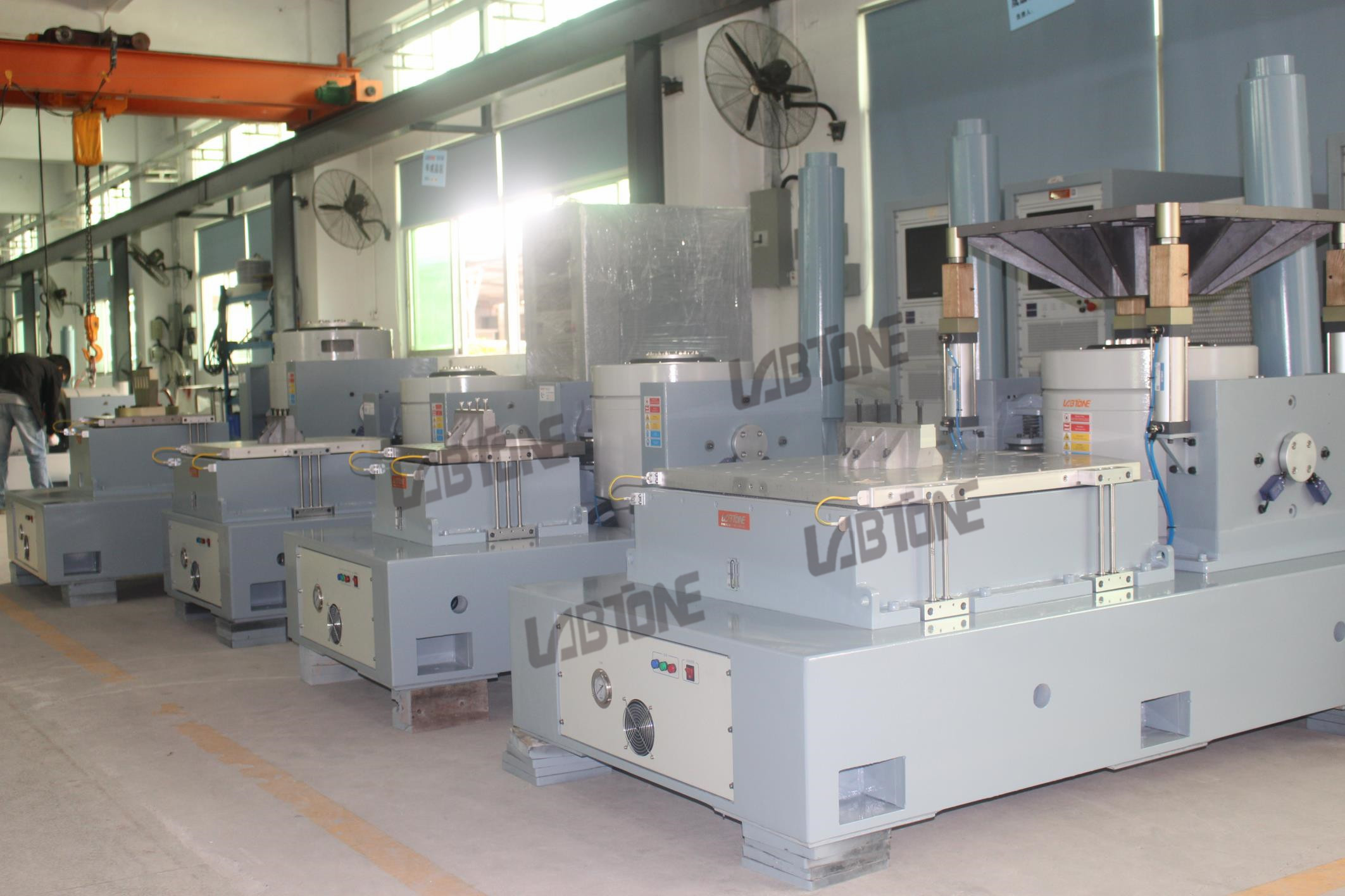

Workshop:
