Shock Test Machine With Dual Mass Shock Amplifier Perform Half sine
10000G 0.2ms
The shock Test system is composed of shock tester, control console
and dual mass shock amplifier.
High Speed Drop Shock Tester Specification
| Model | HSKT10 | HSKT10D | G-HSKT15 | G-HSKT30 | G-HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
Max. Payload (kg) | 10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave |
| Acceleration Range(G) | 20~2000 (bare table) | 20~10000
(bare table) | 20~15000
(bare table) | 20~30000
(bare table) | 20~35000
(bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11
|
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
Max. Acceleration (G) | Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Square | | 150 | 150 | 150 | 100 | 100 | 100 | |
Pulse duration (ms) | Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | |
| Square | | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |
| Controller cabinet dimension(cm) | W55*D50*H80 |
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa |
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F
IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
Application
Apply high acceleration to computer's parts, digital cameras, smart
phones, tablets, mobiles, displays, small household appliances, and
mobile products for the Product fragility testing.
HSKT is the best Shock Machine to make sure the product,
smartphones, tablets, computers and others mobiles can withstand
shock. Apply high acceleration to computer's parts, Batteries ,
smart phones, tablets, laptop, cellular phones, and mobile products
for product fragility test.
The equipment conforms to such testing specifications as
GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, UN38.3,
MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
High Speed Drop Shock Tester Main Feature
- . HSKT is the best Shock Machine to make sure the product,
smartphones, tablets and others mobiles can withstand shock.
- A half-sine wave shock can be generated to produce a required pulse
duration by replacing the rubber pad.
- All operation accomplished automatically. Rebound brake mechanism
by automatically controlled.
- High rigid shock table.
- Using the anvil as a vibration insulation seismic base, to reduce
the vibration effect the surrounding.
Customer Services
Presales:
- Technical consultation: test method, laboratory planning and
suggestion.
- Equipment selection: selection scheme, FAQ.
- Product testing scheme.
In-Sales:
- Customer communication and progress report.
- Guidance for pre-installation preparation, equipment commissioning
and test run.
- Calibration (when Third Party’s verification is required).
After-Sales:
- Technical training: operation of equipment, daily maintenance,
common fault diagnosis and troubleshooting.
- Scheduled on-site service: Detection of problem as soon as possible
in order to eliminate equipment and anthropogenic hazards. This is
to ensure long term and stable equipment operation as well as
delivery of latest technical information.
- Technical support: special paid services are provided according to
customer’s needs.

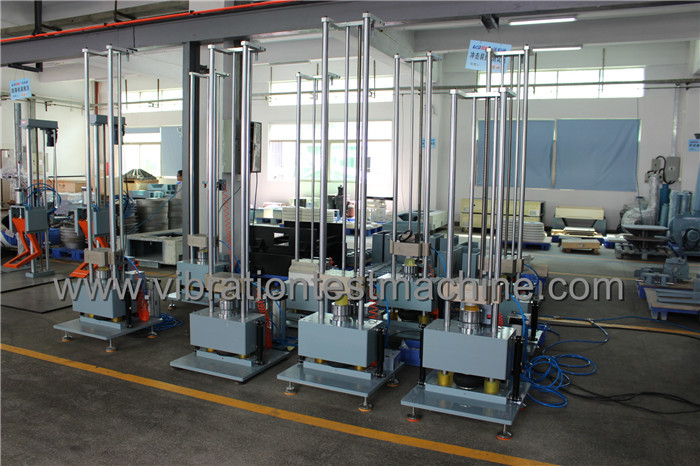

Details images :
