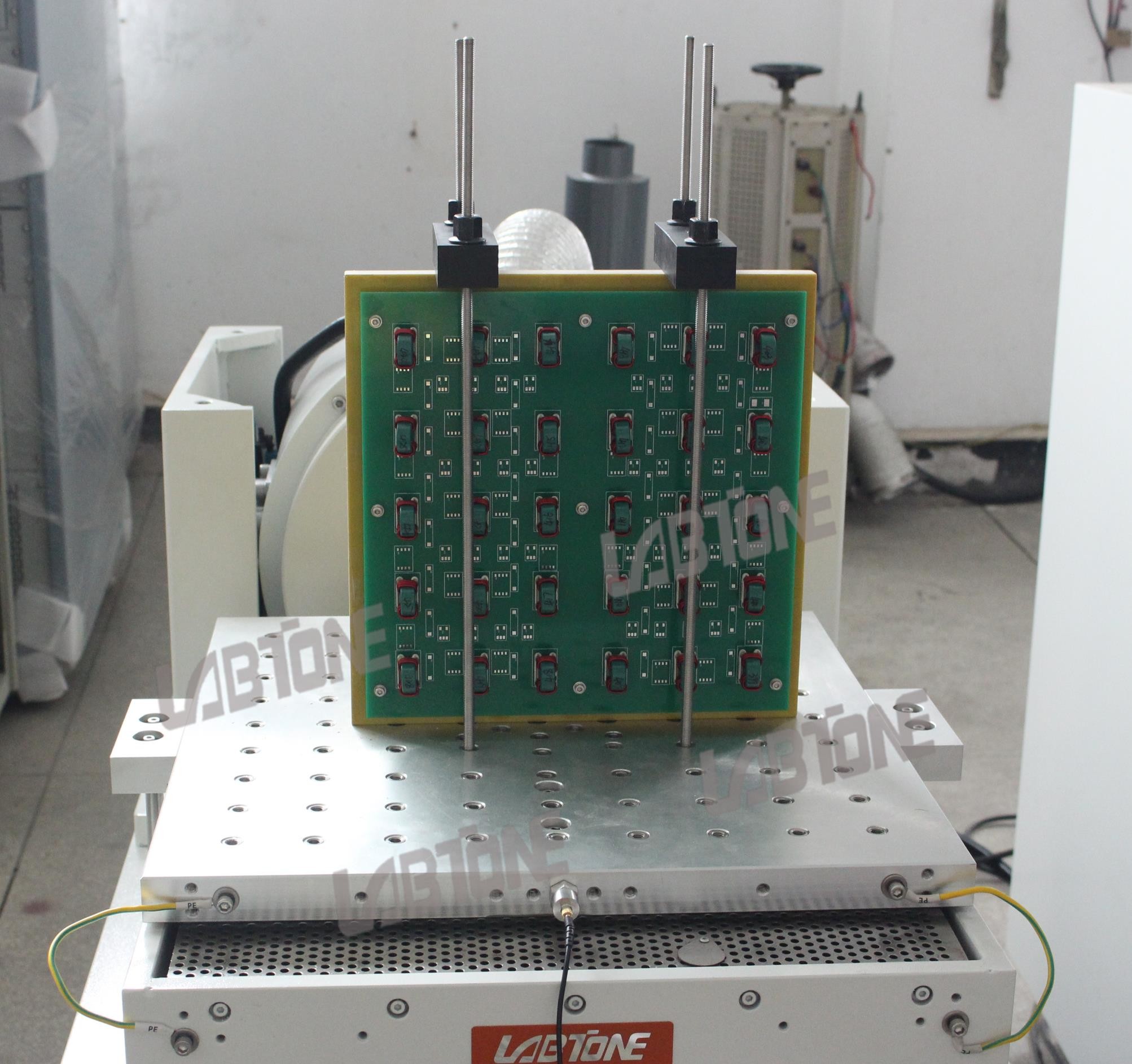

9 KW Vibration Test System With Head Expander , Vibration Exciter ,
Solution Provider
Introduction:
EV series of electromagnetic vibration testing system simulate the
vibration environment under the laboratory condition, and test the
impact strength as well as reliability of various vibration test
applications. In the laboratory, with the aid of vibration testing
system, simulations of reproduction of sinusoidal, random, resonant
search and dwell, classical shock and road models, etc. can be
achieved. It is essential for product quality assurance, new
product research and development.

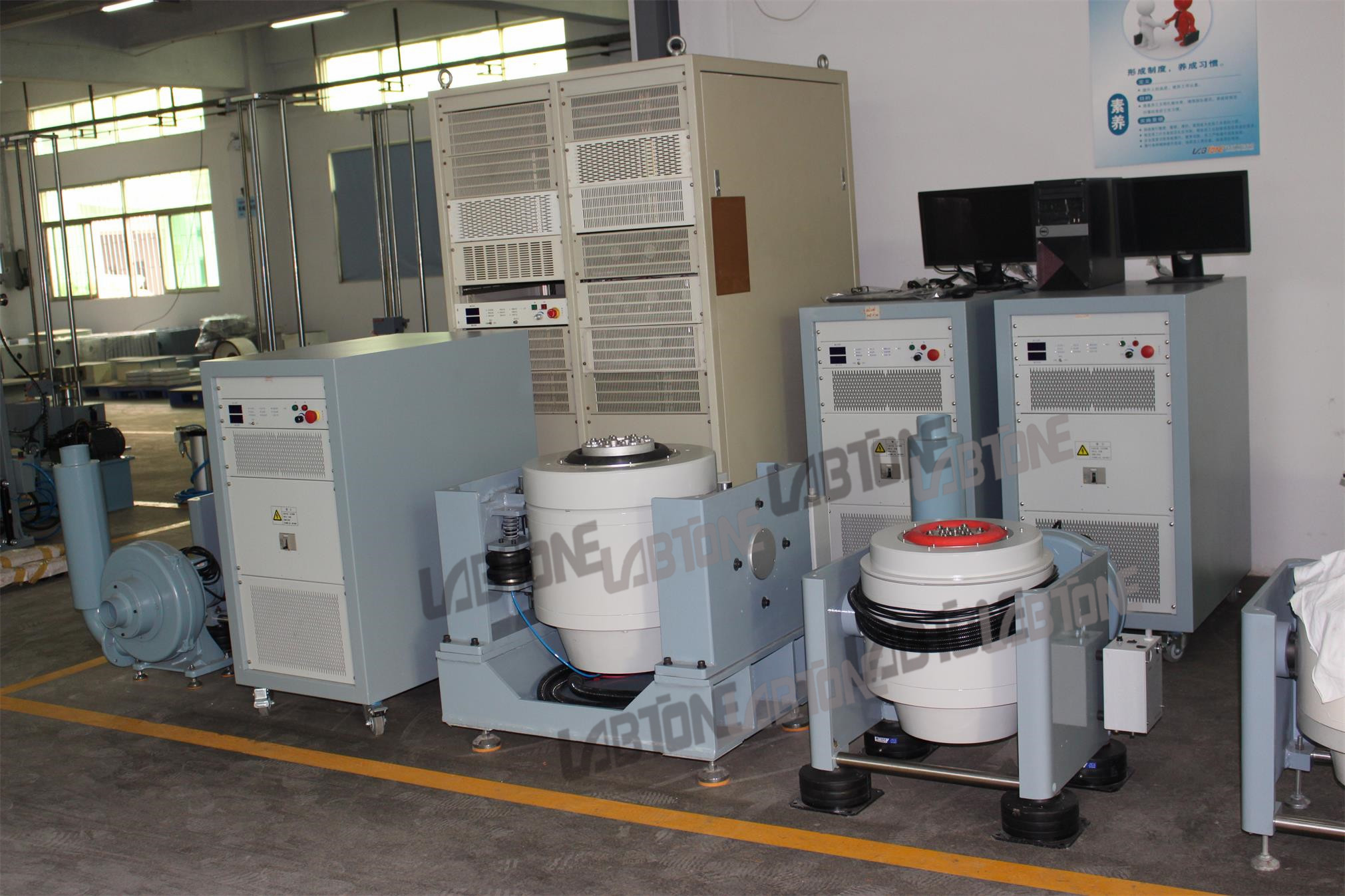

A complete set of vibration testing system is composed of shaker,
power amplifier and vibration measuring control system, in
accordance with the relevant national and international standards
(such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS,
etc.) to provide technical support for establishing product quality
inspection.
Technical Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 1-2500 | 1-3000 | 1-3000 | 1-3000 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
Max. Displacement (mm p-p) | 40 | 50.8 | 50.8 | 50.8 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 200 | 300 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling |
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling |
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
Utility
Requirements | 3-phase AC380V ±10% 50Hz |
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Features:
- Strength of the suspension system and linear motion guiding, strong
carrying capacity, good guiding functions, high stability.
- Perfect performance on amplitude variation.
- High efficient on D Class power conversion, 3 - Sigma peak current,
provide the optimization of power consumption and minimum harmonic
distortion.
- U-type spring ,rollers and linear bearing for strong resistance of
deflecting load
- Able to complete sine ,random , impact environmental tests
- High reliability, especially suitable for long-time operation
- Quick self-diagnosis with safety interlock, high safety
reliability;
- High efficient on D Class power conversion, 3 - Sigma peak current,
provide the optimization of power consumption and minimum harmonic
distortion.
Applicable Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive, Electronics, Aerospace, Vessel, Telecommunication,
Optoelectronics, Instrument etc.
