Vibration Test System Vibration Shaker Meet ISTA 3A 6AStandards
Grms 0.53g 58.72mm
Introduction:
Vibration test is a process of exciting or shocking some part or
device to observe its reaction in real environment. Vibration test
is widely applied in many fields, ranging from circuit board,
airplane, ship, rocket, missile, automobile, household appliance
and other industrial products. Labtone can offer you the whole
vibration and testing proposal, and provide you with the quality
certificates of products according to national and international
standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and
ASTM standards.
Technical Specifications:
| VG3200-76 Electro-dynamic Vibration Shaker |
| Max. Sine force | 2000Kg.f peak |
| Max. Random force | 2000Kg.f rms |
| Max. Shock force | 4000Kg.f peak |
| Frequency range | 2 - 3000 Hz |
| Max. displacement | 76.2 mm p-p |
| Max. speed | 2m / s |
| Max. acceleration | 100G (980 m/s2) |
| First-order resonance frequency | 3200 Hz±5% |
| Effective load | 300 kg |
| Vibration isolation frequency | 2.5 Hz |
| Diameter of armature | Ф320 mm |
| Mass of armature | 25kg |
| Table screw | 16×M10 |
| Flux leakage | ＜10gauss |
| Allowable eccentric moment | 300N.m |
| Shaker dimensions | 1200 × 870 ×1130 mm |
| Shaker weight | About 1700Kg |
Meet International Standards:
MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Main Applications:- Automotive parts and systems - qualification testing
- Electronic assembly, computer equipment testing
- Avionics and military hardware testing
- Satellite component testing
- Product and package testing
- General stress screening

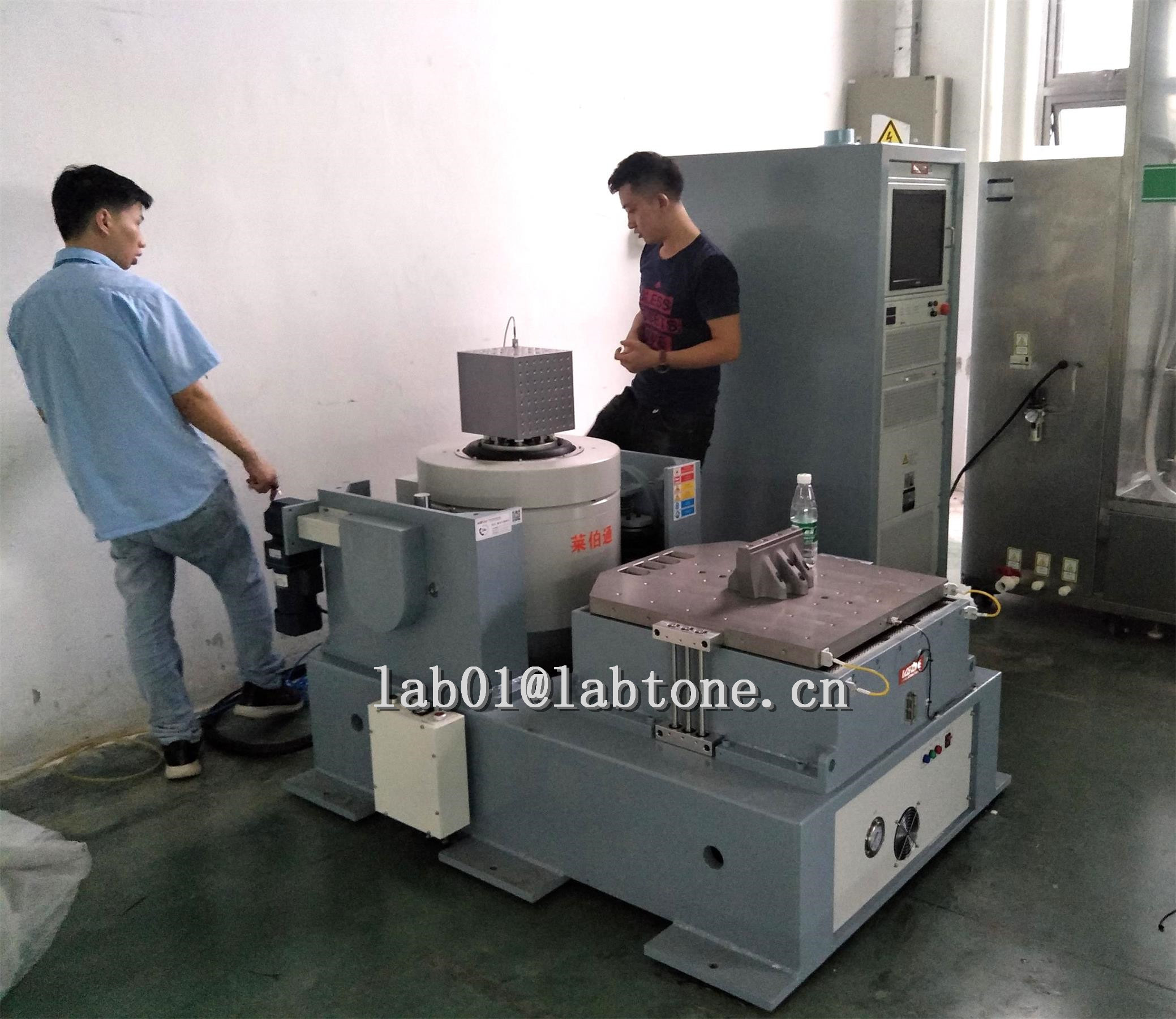

Horizontal oil film slip table
The horizontal slip table is designed to have high tilting moment
and lateral restriction. This design concept is combined with
standard horizontal slip table to enable high dynamic moment limit
and keep guide oil film damping feature. The horizontal slip table
is composed of a slipper, a connector, a natural granite slab,
horizontal slip table base and an independent oil source.
