Mechanical Shock Test Equipment For UN38.3 Tests PCB Board Level Test , JEDEC Test

Mechanical Shock Test Equipment For UN38.3 Tests PCB Board Level Test, JEDEC Test

Introduction

shock test system is mainly used for shock test of Batteries , electronic components and devices with large mass to verify their performance and function reliability and structural integrity after experiencing shock. The shock test systems can meet the international standard of UN 38.3, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F,

Mechanical Shock Test Equipment Specification:

Model	HSKT10	HSKT25	HSKT15	HSKT30	HSKT35
Table Size(mm)	200 x 250	300 x 300	250 x 250	250 x 250	250 x 250
Max. Payload (kg)	10	25	10	10	10
Shock Pulse	Half Sine Wave
Acceleration Range(G)	20~2000 (bare table)	20~3000 (bare table)	20~15000 (bare table)	20~30000 (bare table)	20~35000 (bare table)
Pulse Duration(ms)	0.2~18		0.1~11

Model		SKT30	SKT50	SKT100	SKT200	SKT300	SKT600	SKT1000
Table Size (cm)		40 x 40	50 x 60	70 x 80	100 x 100	120 x 120	150 x 150	200 x 200
Max. Specimen Weight(kg)		30	50	100	200	300	600	1000
Max. Acceleration (G)	Half Sine	600	600	600	500	500	300	300
	Saw-tooth	100	100	100	100	100	100	100
	Square		150	150	150	100	100	100
Pulse duration (ms)	Half Sine	30—0.5	30～1	30～1	30～2	20～3	20～3	20～3
	Saw-tooth	18～6	18～6	18～6	18～6	18～6	16～6	18～6
	Square		30～6	30～6	30～6	30～6	30～6	30～6
Controller cabinet dimension(cm)		W55D50H80
Machine weight(Kg)		1900	2300	3200	4200	8500	15500	21500
Power supply		3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa
Standards		GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-

Main Features

1) User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.

2) Half sine, square waveform shock pulse programmers.

3) High rigidity shock tables.

4) A full range of safety features.

5) Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock .

6) Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation

Customer Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.

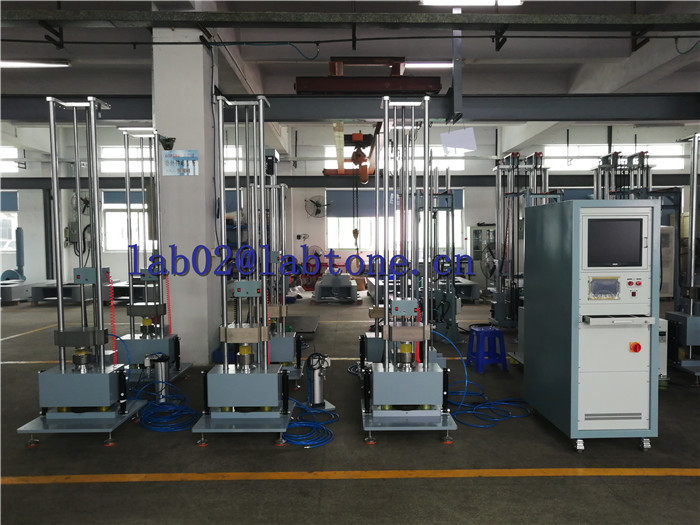

Workshop :

Mechanical Shock Test Equipment For UN38.3 Tests PCB Board Level Test , JEDEC Test
