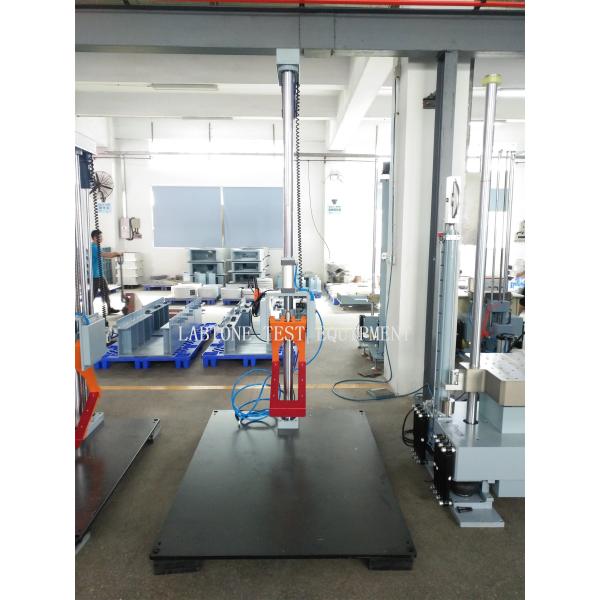

    Free Fall Drop Test Machine Meet ISTA 6 - Amazon Test Standards

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : DT200
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 50 Sets / Month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Free Fall Drop Test Machine Meet ISTA 6 - Amazon Test Standards


    Free Fall Drop Test Machine Meet ISTA 6 - Amazon Test Standards


    Drop Tester

    Drop testing determines the ability of a package to withstand the impacts prevalent in the distribution environment. It helps determine the ruggedness of packages and the effectiveness of their interior cushioning when exposed to impact during material handling. The effects of dropping are easily duplicated in a laboratory setting using controlled and precise at, corner, and edge drop tests.



    Specifications

    ModelDT200
    Drop height range300 - 2000 mm
    Max. Payload85 Kg
    Dimension of specimen800 × 800 × 800 mm
    Height displayStandard scale
    Machine typeTest pieces supported by single bracket arm; pneumatic free drop
    Control meansHandle control
    Drop modeFree drop
    Height adjustment meansMotor control and adjustment by precision screw
    Cushioning mechanismHydraulic cushioning
    Dimension of Machine1700 (W) ×2600 (H) ×1200 (D) mm
    Base plate dimensions1700 (W) × 20 (H) × 1200 (D) mm
    Equipment weight550 kg
    Power supplyAC 220V 50Hz (can be adjusted according to customer’s needs)
    Air pressure requirement0.5~0.7 Mpa


    Features

    • The dual shaft and guide post structure is supported stably in the ascending and dropping process, without swing.
    • The ascending and dropping of the equipment are controlled by a precision screw to realize accurate and rapid positioning.
    • In the process of dropping, the swing arm is broken away from the test piece specimen downwards at the acceleration not less than 3g/sec.
    • In case of abnormal power failure during test, the drop tester table does not slide automatically and the swing arm can automatically recognize non-air pressure state and is not broken away abnormally.
    • The hydraulic cushioning device is used for the drop tester table and can absorb 90% of kinetic energy to stabilize the drop tester table and reduce noise.

    FAQ



    1. Q: What is your warranty ?

    • 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

    2. Q: How-to vedio provided ?

    • Yes, if required, our engineers will record a specialize how-to video for you.

    3. Q: Is the machine made in your own plant ?

    • Yes, welcome to visit our plant(factory), also we support OEM and ODM.

    4. Q: What about the quality ?

    • Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
    • All of our machine are strictly according to CE & ISO standards.


    Company Profile:

    Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
    Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
    Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

    Packaging
    Plywood case with vacuum packing
