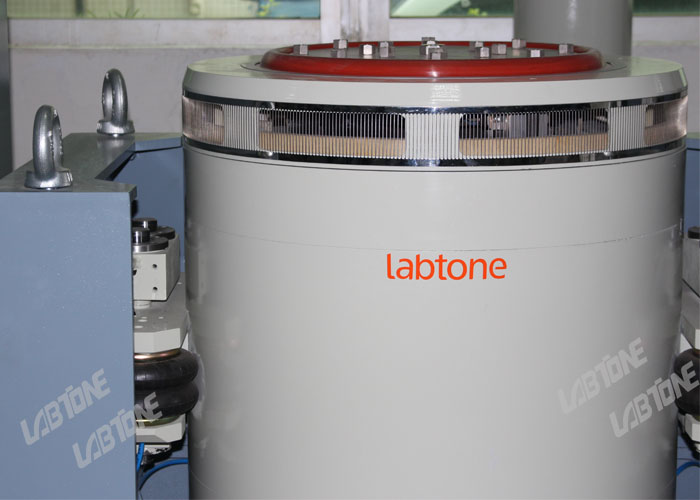

Vertical Vibration Test Equipment Meet JESD 22-B103B For Components

Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Applicable Industries: Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.

Specifications: EV203-EV220

Model	EV203	EV206	EV210	EV220
Vibration Generator	VG300/40	VG300/50	VG1000/50	VG2000/50
Frequency(Hz)	1-3000	1-3000	1-3000	1-3000
Max Exiting Force(kg.f)	300	600	1000	2000
Max. Displacement (mmp-p)	40	51	51	51
Max. Acceleration(g)	100	100	100	100
Max. Velocity(cm/s)	200	200	200	200
Payload(kg)	120	200	300	400
Armature Mass(kg)	3	6	10	20
Armature Diameter(mm)	φ150	φ200	φ240	φ320
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	460	920	1100	1600
Vibration Generator Dimension LWH(MM)	750555670	800600710	845685840	12008701100
Power Amplifier	Amp3k	Amp6k	Amp12k	Amp22k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	250	320	350	500
Power Amplifier Dimension LWH(MM)	8005501250	8005501250	8005501520	8005501520
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	9	20	25	35

Features

Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
Perfect performance on amplitude variation.
High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
Rapid self-test diagnostics and chain safeguard, high high safety and reliability
Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
Different application on the vertical and horizontal tables.
Simple operation for the controller.

Customer Services

Presales

In-Sales

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.
