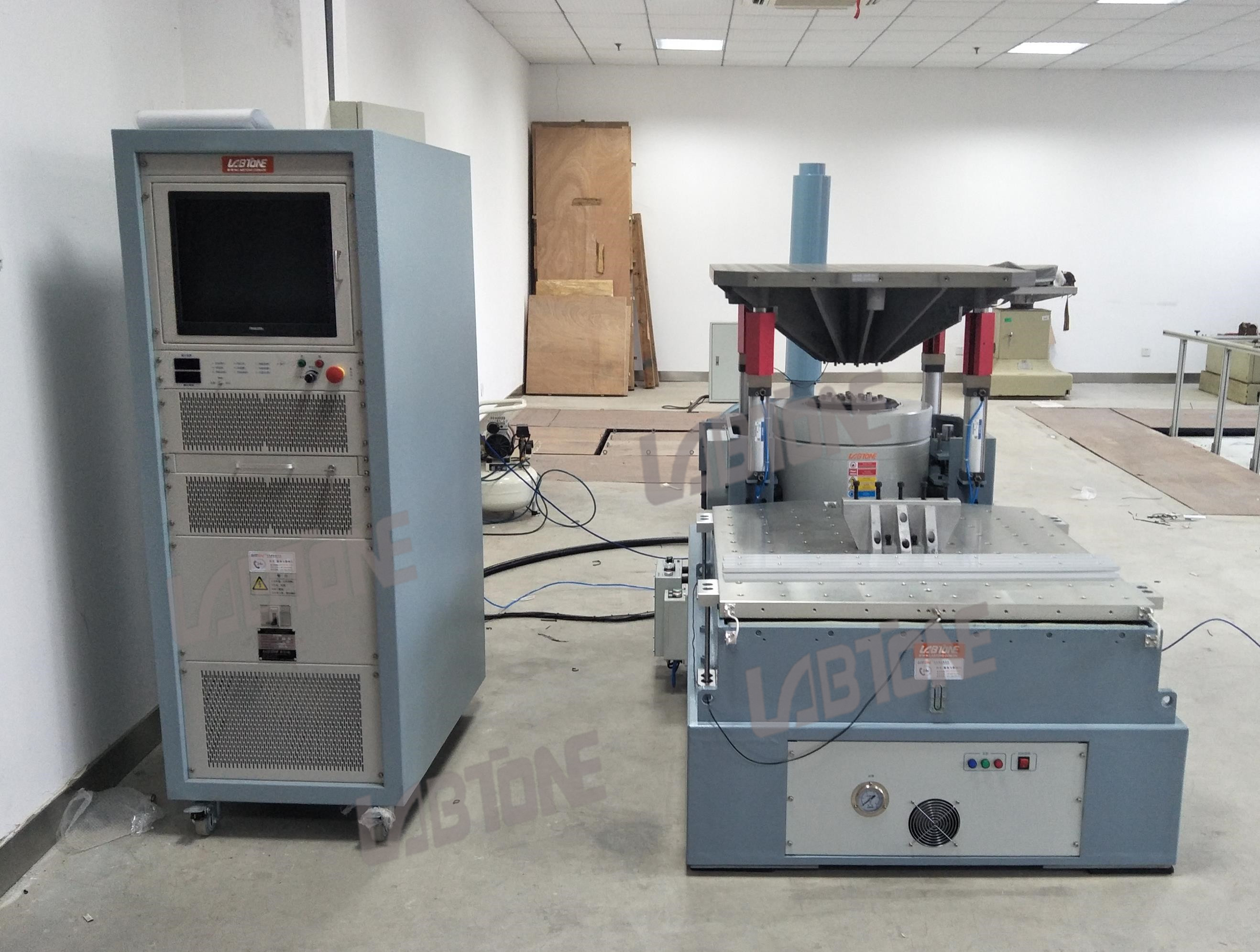

    LABTONE 3-axis Vibration Test Machine With ISTA 1A ,IEC and GJB 150.25 Standards

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : EV203
    Certification : CE / ISO
    Payment Terms : T/T, L/C
    Delivery Time : 45 Working Days
    Price : Negotiable
    Supply Ability : 15 Sets / Month
    • Product Details
    • Company Profile

    LABTONE 3-axis Vibration Test Machine With ISTA 1A ,IEC and GJB 150.25 Standards


    LABTONE 3-axis Vibration Test Machine With ISTA 1A ,IEC and GJB 150.25 Standards


    Discription


    Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.


    Specifications: EV103-EV220


    ModelEV103EV203EV106EV206EV210EV220
    Vibration GeneratorVG300/25VG300/40VG600/25VG300/50VG1000/50VG2000/50
    Frequency(Hz)2-40002-25002-30002-30002-30002-2500
    Max Exiting Force(kg.f)30030060060010002000
    Max. Displacement (mmp-p)253825505050
    Max. Acceleration(g)100100100100100100
    Max. Velocity(cm/s)200120180200200200
    Payload(kg)110120200200300400
    Armature Mass(kg)33661020
    Armature Diameter(mm)φ150φ150φ200φ200φ240φ320
    Cooling MethodForced Air Cooling
    Vibration Generator Weight(kg)46046072092011001600
    Vibration Generator Dimension L*W*H(MM)750*560*670750*555*670800*600*710800*600*710845*685*8401200*870*1100
    Power AmplifierAmp3kAmp3kAmp6kAmp6kAmp12kAmp22k
    Cooling MethodForced Air Cooling
    Power Amplifier Weight(kg)250250320320350500
    Power Amplifier Dimension L*W*H(MM)800*550*1250800*550*1250800*550*1250800*550*1250800*550*1520800*550*1520
    Utility
    Requirements    		3-phase AC380V ±10% 50Hz
    Aggregate Capacity(KW)8918202535


    Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.



    Features:

    • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
    • Perfect performance on amplitude variation.
    • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
    • Rapid self-test diagnostics and chain safeguard, high high safety and reliability
    • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
    • Different application on the vertical and horizontal tables.
    • Simple operation for the controller.

    Our Services:
    Pre-sales service
    Technical Advisory: Testing method, laboratory planning and advice
    Equipment Selection: Type-selecting scheme,FAQ
    Product testing scheme
    Selling service
    Customer Communication,progress communication
    Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
    Cooperate with measuring if need the third party verification
    After-sale service
    Quality assurance period for one year,lifelong maintenance.
    Technical guidance
    Feedback within 2 hours after get the call.
    Accept OEM,Design service,Buyer lable

    Machine Workshop:


    LABTONE 3-axis Vibration Test Machine With ISTA 1A ,IEC and GJB 150.25 Standards


    LABTONE 3-axis Vibration Test Machine With ISTA 1A ,IEC and GJB 150.25 Standards
