    Lab Machine Vibration Test System with Manufacturer's Price, Freq 1-3000 Hz

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : EV206
    Certification : CE / ISO
    Payment Terms : T/T, L/C
    Delivery Time : 45 Working Days
    Price : Negotiable
    Supply Ability : 15 Sets / Month
    • Product Details
    • Company Profile

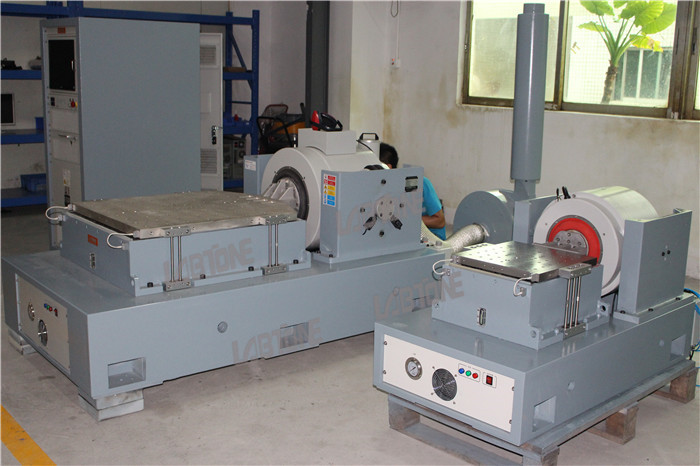

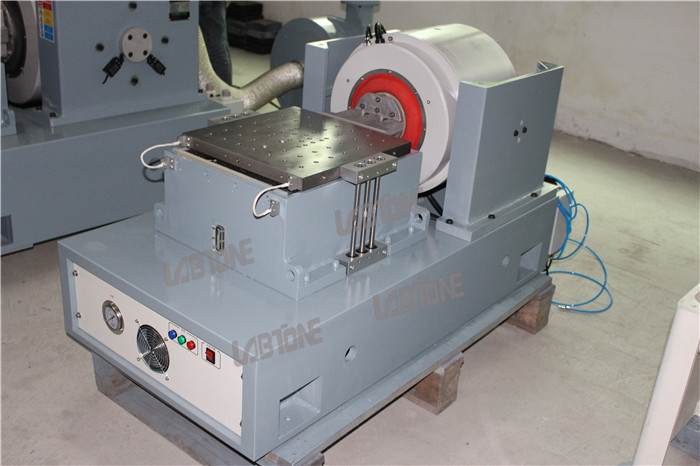

    Lab Machine Vibration Test System with Manufacturer's Price, Freq 1-3000 Hz


    Lab Machine Vibration Test System with Manufacturer's Price, Freq 1-3000 Hz


    Introduction:


    EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.


    Specifications: EV203-EV220


    ModelEV203EV206EV210EV220
    Vibration GeneratorVG300/40VG300/50VG1000/50VG2000/50
    Frequency(Hz)2-25002-30002-30002-2500
    Max Exiting Force(kg.f)30060010002000
    Max. Displacement (mmp-p)38505050
    Max. Acceleration(g)100100100100
    Max. Velocity(cm/s)120200200200
    Payload(kg)120200300400
    Armature Mass(kg)361020
    Armature Diameter(mm)φ150φ200φ240φ320
    Cooling MethodForced Air Cooling
    Vibration Generator Weight(kg)46092011001600
    Vibration Generator Dimension L*W*H(MM)750*555*670800*600*710845*685*8401200*870*1100
    Power AmplifierAmp3kAmp6kAmp12kAmp22k
    Cooling MethodForced Air Cooling
    Power Amplifier Weight(kg)250320350500
    Power Amplifier Dimension L*W*H(MM)800*550*1250800*550*1250800*550*1520800*550*1520
    Utility
    Requirements
    3-phase AC380V ±10% 50Hz
    Aggregate Capacity(KW)9202535

    Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



    Applicable Industries: Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.


    Features:

    • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
    • Perfect performance on amplitude variation.
    • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
    • Rapid self-test diagnostics and chain safeguard, high high safety and reliability
    • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
    • Different application on the vertical and horizontal tables.
    • Simple operation for the controller.

    Working Principle:



    Detailed:


    Lab Machine Vibration Test System with Manufacturer's Price, Freq 1-3000 HzLab Machine Vibration Test System with Manufacturer's Price, Freq 1-3000 HzLab Machine Vibration Test System with Manufacturer's Price, Freq 1-3000 Hz


    Customer Services:


    Presales

    • Technical consultation: test method, laboratory planning and suggestion.
    • Equipment selection: selection scheme, FAQ.
    • Product testing scheme.

    In-Sales

    • Customer communication and progress report.
    • Guidance for pre-installation preparation, equipment commissioning and test run.
    • Calibration (when Third Party’s verification is required).

    After-Sales

    • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
    • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
    • Technical support: special paid services are provided according to customer’s needs.
