    CE Certified 700kg Payload Lab Drop Tester for Heavy Packaged Samples

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : DT070
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 30days
    Supply Ability : 50 Sets / Month
    • Product Details
    • Company Profile

    CE Certified 700kg Payload Lab Drop Tester for Heavy Packaged Samples

    CE Certified 700kg Payload Lab Drop Tester for Heavy Packaged Samples


    Product Description
    For the massive packing goods and the mass is large, the vertical drop height is relatively low in the transportation and handling. So the Standard Free DropTest Equipment for Heavy Packaged Cargo is relatively low. This drop tester is mainly used for larger package drop test. Zero height drop tester use a quickly moves down E fork mounting as bracket. The specimen place balance as the test requirment(plane, edge,angle). When doing the test, the bracket do high-speed downward movement before the specimen, acceleration >3g, it need guarantee the bracket separate with the specimen and realize free fall. The standard drop height range is 2.54cm-120cm.

    .

    300 kg Specimen Weight Packaging Drop Test Machine For Heavy Packaged Cargo Specification


    ModelDT020DT050DT070
    Drop height(mm)0----12000----12000---1200
    Specimen weight(KG)200500700
    Specimen dimension(mm)1000*1000*10001200*1200*12001200*1200*1200
    Drop typeFree drop
    Machine dimension(mm)1900*1700*28002100*1700*28002100*1700*2800
    Machine Weight(kg)250032004500
    Power supply3 phase AC380V 50HZ
    StandardsISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27

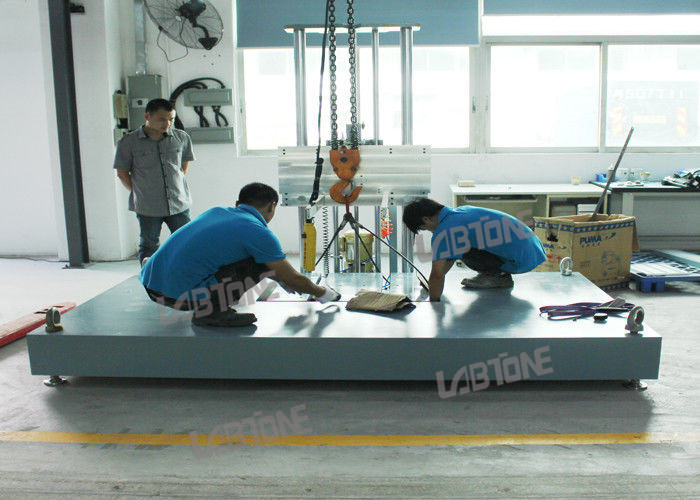

    Detail Picture


    CE Certified 700kg Payload Lab Drop Tester for Heavy Packaged Samples
    CE Certified 700kg Payload Lab Drop Tester for Heavy Packaged Samples

    Functions and Features


    1 With upper and lower displacement limit, safety and reliability;

    2 Lifting height can be adjusted arbitrarily to meet the needs of different users;

    3 Zero freely-drop test stand adopts the double-rail guiding device for stable and reliable lifting operation;

    4 The freely-drop test stand can achieve the clamping fall tests for surface, edge and corners of specimen at different direction;

    5 The machine is only needed to be placed on the flat marble or concrete ground for installation, without special foundation.


    Labtone Service


    1 12 months warranty, lifelong maintenance. If any quality problems on our side occured in this period.

    we promise we will give you a reply within 48 hours and solution provide within 3 working days.

    We can offer operation video and English operation muanual. We can provide video-conference.

    If customers require on-site service,the transport and travel expense shall be borne by customer.


    2 Help choose right model with series of service


    3 Customization service-OEM,Design service,Buyer lable third party verification


    Packaging


    Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
