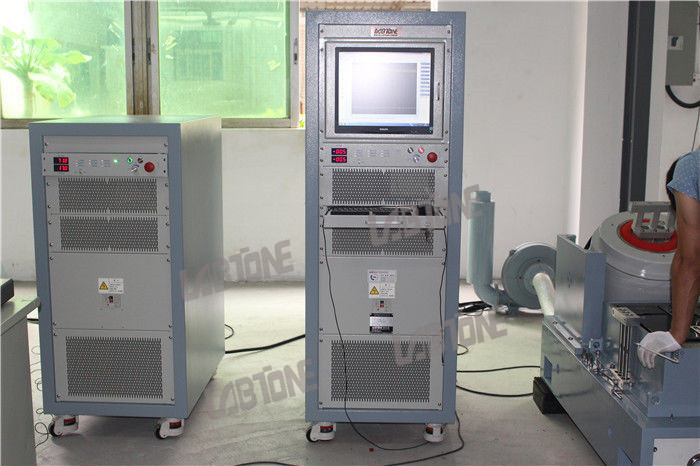

BL-5000 Dynamic Testing Equipment , Industrial Shaker Table With Horizontal Slip Table

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	EV250
Certification :	CE / ISO
Payment Terms :	T/T, L/C
Delivery Time :	45 Working Days
Price :	Negotiable
Supply Ability :	15 Sets / Month

Add to Cart

Product Details
Company Profile

BL-5000 Dynamic Testing Equipment , Industrial Shaker Table With Horizontal Slip Table

BL-5000 Dynamic Testing Equipment , Industrial Shaker Table With Horizontal Slip Table

Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Pptoelectronics, Instrument etc.

Specifications: EV232-EV330

Model	EV232	EV240	EV250	EV260	EV320	EV330
Vibration Generator	VG300/25	VG4000/50	VG5000/50	VG6000/50	VG2000/76	VG3000/76
Frequency(Hz)	2-2500	2-2500	2-2500	2-2500	2-3000	2-2500
Max Exiting Force(kg.f)	3200	4000	5000	6000	2000	3000
Max. Displacement (mmp-p)	50	50	50	50	76	76
Max. Acceleration(g)	100	100	100	100	80	80
Max. Velocity(cm/s)	200	200	200	200	200	200
Payload(kg)	500	800	1000	1000	1000	1000
Armature Mass(kg)	30	40	50	50	25	35
Armature Diameter(mm)	φ400	φ400	φ450	φ450	φ320	φ320
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	2000	2500	3500	3800	2000	3000
Vibration Generator Dimension LWH(MM)	14009001100	14009801100	160011201340	160011201340	85010001100	110013001440
Power Amplifier	Amp35k	Amp50k	Amp60k	Amp70k	Amp30k	Amp45k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	550	600	800	1000	550	600
Power Amplifier Dimension LWH(MM)	8005501920	8005501920	8005501920	8005501920	8005501920	8005501920
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	45	64	85	95	40	60

Features:

Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
Perfect performance on amplitude variation.
High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
Rapid self-test diagnostics and chain safeguard, high high safety and reliability
Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
Different application on the vertical and horizontal tables.
Simple operation for the controller.

Customer Services

Pre-sales service

Technical Advisory: Testing method, laboratory planning and advice

Equipment Selection: Type-selecting scheme,FAQ

Product testing scheme

In-sales service

Customer Communication,progress communication

Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning

Cooperate with measuring if need the third party verification

After-sales service

Quality assurance period for one year,lifelong maintenance.

Technical guidance

Feedback within 2 hours after get the call.

Accept OEM,Design service,Buyer label

Application:

BL-5000 Dynamic Testing Equipment , Industrial Shaker Table With Horizontal Slip Table

Working Principle:

BL-5000 Dynamic Testing Equipment , Industrial Shaker Table With Horizontal Slip Table

Product Tags:

packaging testing equipments

vibration test table

BL-5000 Dynamic Testing Equipment , Industrial Shaker Table With Horizontal Slip Table
