Incline Impact Test Machine, Incline Shock Test Meet ASTMD880-92 Standard

Product Application

Labtone Inclined Impact Test Systems meet industry specifications with the added benefit of some new and innovative design features. The unique articulating carriage system we utilize allows the carriage to pivot and raise so that it becomes parallel with the ground. This design feature makes it much safer and easier to load test items with a forklift. After the specimen has been loaded, the carriage pivots back into its testing position and you are ready to begin impact testing.

Technical Parameter

• Max. Payload: 300kg
• Max. Dimension of Specimen: 1200x1200x1600 mm
• Max. Shock Distance: 1.8M (discussible)
• Impact Velocity Range: 1 - 2.1 m/s
• Tolerance of Impact Speed: ≤ ±5%
• Speed Display: three-digit numbers
• The Impact Angle: 10°±1°(Negotiable, nonstandard)
• Base Dimension: W1800×H2000mm (Equipped with solid wood board)

Working Principle

By using the principle of potential energy into kinetic energy, the box is free to slide to the bottom of the predetermined position to obtain a certain impact speed and a speed direction perpendicular to the impact plate collision to achieve the intended test purposes.

III. Equipment Components

Our service

• 12 months warranty, lifelong maintenance. If any quality problems on our side occured in this period. we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service,the transport and travel expense shall be borne by customer.
• Help choose right model with series of service
• third party verification

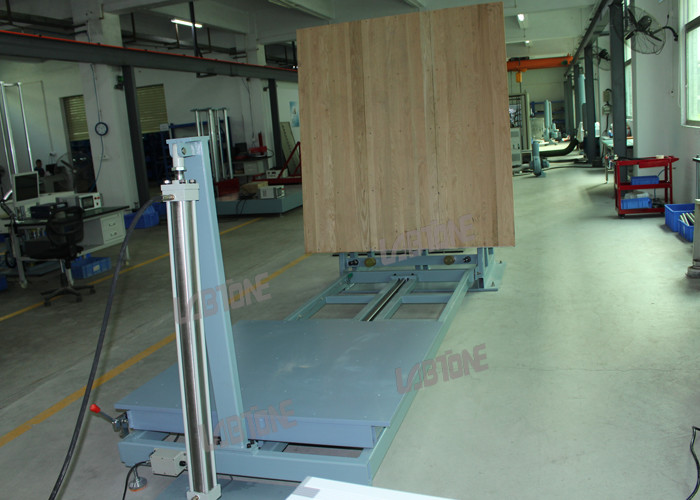

Product Picture

Labtone Test Equipment Co., Ltd. is a +20 year China manufacture of reliable, cost-effective equipments . Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Machine, Drop Tester, Transportation Simulators, Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expand 6,000 square meter facility in Donguan, GuangDong in 2015.Today, Our products are found around the world in electronics, automotive,automotive,aerospace,telecommunication, optoeletronics instrument and industrial machinery applications. Our experience, and commitment to new product development, has resulted in products that are easy to use,accurate and designed for decades of service

Labtone products carry a one-year(12months) Warranty and are available direct from our factory in Dongguan, China. We provide comprehensive factory service and support,technical literature, manuals and guides as well as having a qualified staff of experts to help solve your application issues.

We sincerely invite you to visit our factory.
