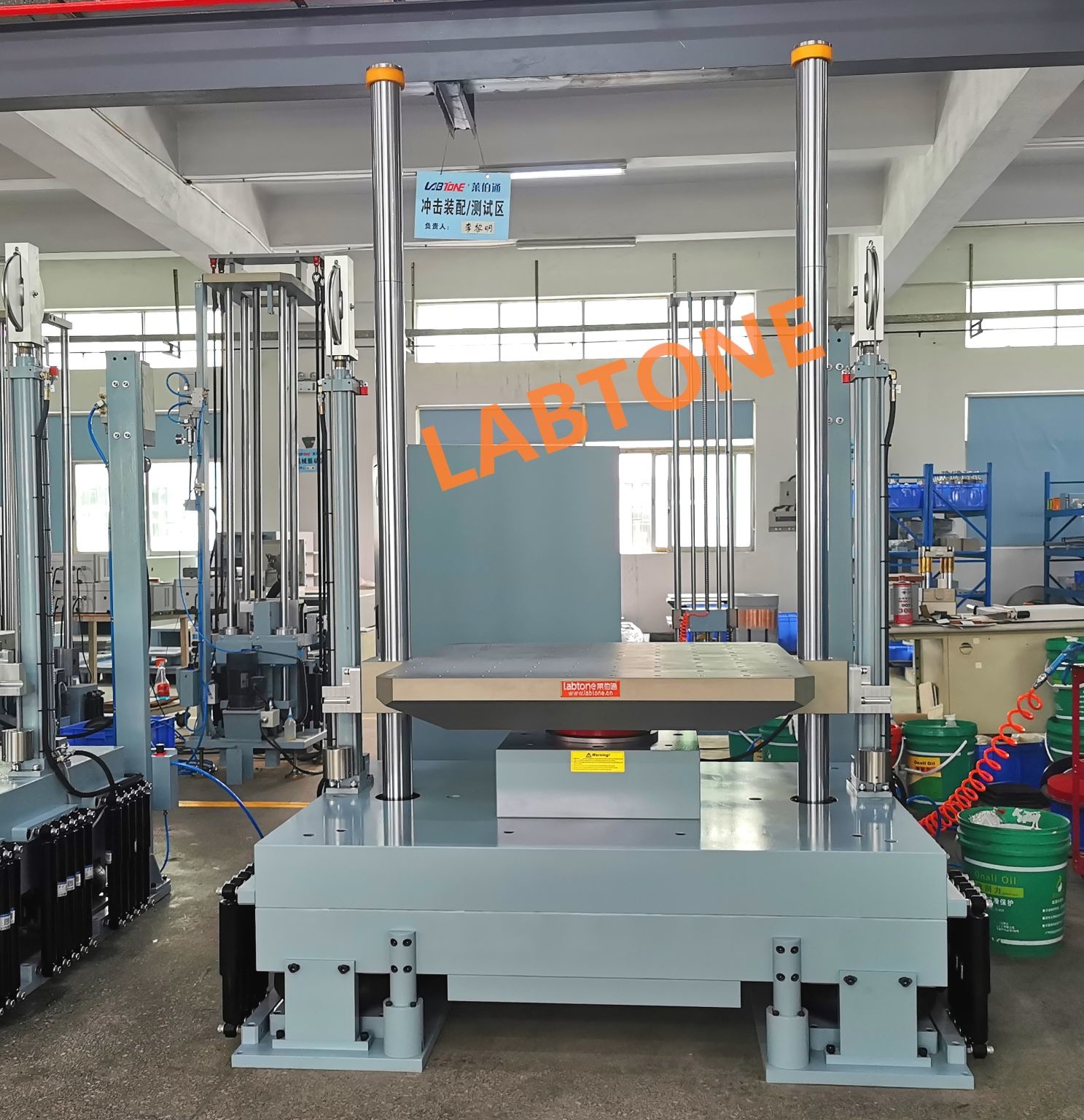

Shock Testing Machine For Electric Vehicle Battery With Half Sine 150@6ms, 50g@11ms

Labtone Test Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Shock Testing Machine For Electric Vehicle Battery With Half Sine 150@6ms, 50g@11ms from wholesalers

    Buy cheap Shock Testing Machine For Electric Vehicle Battery With Half Sine 150@6ms, 50g@11ms from wholesalers
    • Buy cheap Shock Testing Machine For Electric Vehicle Battery With Half Sine 150@6ms, 50g@11ms from wholesalers
    • Buy cheap Shock Testing Machine For Electric Vehicle Battery With Half Sine 150@6ms, 50g@11ms from wholesalers
    • Buy cheap Shock Testing Machine For Electric Vehicle Battery With Half Sine 150@6ms, 50g@11ms from wholesalers

    Shock Testing Machine For Electric Vehicle Battery With Half Sine 150@6ms, 50g@11ms

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : SKT200
    Certification : CE, ISO
    Price : to be discussed
    Payment Terms : T/T
    Supply Ability : 15 Sets / Month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Shock Testing Machine For Electric Vehicle Battery With Half Sine 150@6ms, 50g@11ms


    Shock Testing Machine For Electric Vehicle Battery With Half Sine


    UN_38.3 Lithium Battery Test Standard.pdf


    Product description
    Consumer product in its life cycle in two cases will be subjected to impact. One is the impact caused by collisions and jumps caused by vehicles walking on uphill roads or when people fall on the ground during transportation. Hand-held products (such as mobile phones) are more harmful to the product from the impact of falling without cushion protection. In the product design stage, the mechanical test can quickly verify the structural strength level, or determine whether the packaging material has an appropriate cushioning effect. The severity of the test depends on the waveform, G value, pulse time, and number of shocks.

    In our daily life, the most frequently encountered shock waveforms are half sine, trapezoid and sawtooth waves. The test is mainly based on unpackaged products. Generally, three axes with six sides and three shocks per side are the main test requirements.

    Technical Specifications


    ModelSKT50SKT100SKT200SKT300SKT500SKT1000SKT1500
    Table size (cm)40 x 4050 x 6070 x 80100 x 100120 x 120150 x 150200 x 200
    Maximum Specimen Weight(Kg)5010020030050010001500
    Max acceleration(G)half sine600600600500500300300
    saw-tooth waveform100100100100100100100
    square10010010060505050
    Pulse Duration (ms)half sine30~130~230~220~320~320~320~3
    saw-tooth waveform18~618~618~618~618~618~618~6
    square12~612~612~612~612~612~612~6
    Machine Dimension(cm)82x90x195120x105x245130x120x260150x130x260200x160x300230x180x310250x250x310
    Controller cabinet Dimension(cm)W55 x D50 x H80
    Machine Weight(Kg)105020003200420085001550021500
    Utility3-phase AC380V 50/60Hz 0.5~0.8MPa
    Requirements
    Conforming standardsGB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL


    Warranty: 12 months from delivery, lifelong time maintainance.

    After-sale service: feedback within 4-8 hours after get the call or email.

    Service: OEM, ODM


    Certificate: China official third-party calibration report / CE Certification


    Customer Service


    Service timeliness


    When a fault report is received from customer〈including telephone, fax and email〉:

    LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.


    Presales:

    • Technical consultation: test method, laboratory planning and suggestion.
    • Equipment selection: selection scheme, FAQ.
    • Product testing scheme.

    In-Sales:

    • Customer communication and progress report.
    • Guidance for pre-installation preparation, equipment commissioning and test run
    • Calibration (when Third Party’s verification is required)

    After-Sales:

    • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
    • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
    • Technical support: special paid services are provided according to customer’s needs.
