ISTA 6A Amazon Vibration Test Machine Random Vibration Testing

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	EV240
Certification :	CE / ISO
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	15 Sets / Month
Delivery Time :	45 Working Days

Add to Cart

Product Details
Company Profile

ISTA 6A Amazon Vibration Test Machine Random Vibration Testing

ISTA 6A Amazon Vibration Test Machine Overall Grms Levels of 0.53G and 0.46G

ISTA_Project_6-Amazon.com-SIOC_18-18.pdf

ISTA_Project_6-Amazon.com-OB_18-18.pdf

Introduction:

Vibration Testing is performed to determine if a product can withstand the rigors of its intended use. Labtone is a professional manufacturer for high-performance vibration shaker including electrodynamic shakers and repetitive shock vibration tables.

We can customize vibration test system to meet your specific needs. Choose from a number of custom options for your electrodynamic vibration shaker.

Technical Specification for EV240

Shaker Specifications VG4000-50
Peak Sine (Pk)	4000Kg.f peak (40KN)
Random (RMS)	4000Kg.f r.ms (40KN) @ISO5344
Shock (Pk)	12000Kg.f peak (120KN) @6ms
Usable Frequency	DC～3000Hz
Maximum Displacement (p-p)	51mm (2inch)
Max. velocity	2m/s
Max. acceleration	Sine:100G (980 m/s²)；Random: 60G (588 m/s²)
Vertical Load Support	500 kg
Body Suspension Natural Frequency (Thrust Axis)	Less than 2.5 Hz
Armature Diameter	Ф440 mm
Armature Weight	36kg
Fundamental Resonance Frequency (Bare table)	2,500 Hz (nom.) +/- 5%
Load Attachment Points (Standard)	16 stainless steel M10 Inserts
Stray Flux Density	＜10gauss
Allowable partial force	500.N.M
Shaker dimensions	1283mmL×1000mmD×1138mmH
Weight of Shaker	About 2600Kg
Power Amplifier Specifications LA403L
Rated Output Capacity	40KVA(120Vrms/380Arms)
Signal to Noise Ratio	Greater than 65 dB
Amplifier Efficiency	Greater than 90%
Amplifier Overall Dimensions	650mmL×920mmD×2100mmH
Weight of Amplifier	About480Kg
Interlock Protection	●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel
Shaker controller Specifications
Hardware	2 Analog Input Channels, 1 Drive Channel,102.4 kHz Sampling Rate, 40kHz Frequency Range,>120dB Dynamic range,24-bit ADC/DAC, Centralized 32-bit floating DSP processing and low-noise design , > 90 dB Random control dynamic range , Windows O/S GUI Ethernet connectivity, graphic interface.-20~60℃ Working Temperature Fanless Structure to Reduce the BacKground Noise.
Application software	●Base Random,●Swept Sine,●Classic Shock
PC Configuration:	● PC(3.6GHz CPU 8GB 1TB 1000Mbps Ethernet port./USB port /DVD-RW/ Microsoft Windows 10 OS Microsoft Word / Excel and PDF are recommended.(options)
Control Accelerometers	●Mode: Lab-24100 High sensitivity Charge accel ,10M, PVC M5 coaxial plug to BNC plug low noise cable ,0.5—7kHz ,30pC/g ,1500g M5 side Conn,Ground isolation,-50℃ to 120℃,25gn, HEX16x28mm.H

Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Applicable Industries:
Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.

Features:

Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
U-type spring ,rollers and linear bearing for strong resistance of deflecting load
Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
Able to complete sine ,random , impact environmental tests
This system requires voltage fluctuation, ≤±10%
This system requires Grounding resistance, ≤4Ω
High reliability, especially suitable for long-time operation

Our Services:

Pre-sales service

Technical Advisory: Testing method, laboratory planning and advice

Equipment Selection: Type-selecting scheme,FAQ

Product testing scheme

Selling service

Customer Communication,progress communication

Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning

Cooperate with measuring if need the third party verification

After-sale service

Quality assurance period for one year,lifelong maintenance.

Technical guidance

Feedback within 2 hours after get the call.

Accept OEM, Design service,Buyer label

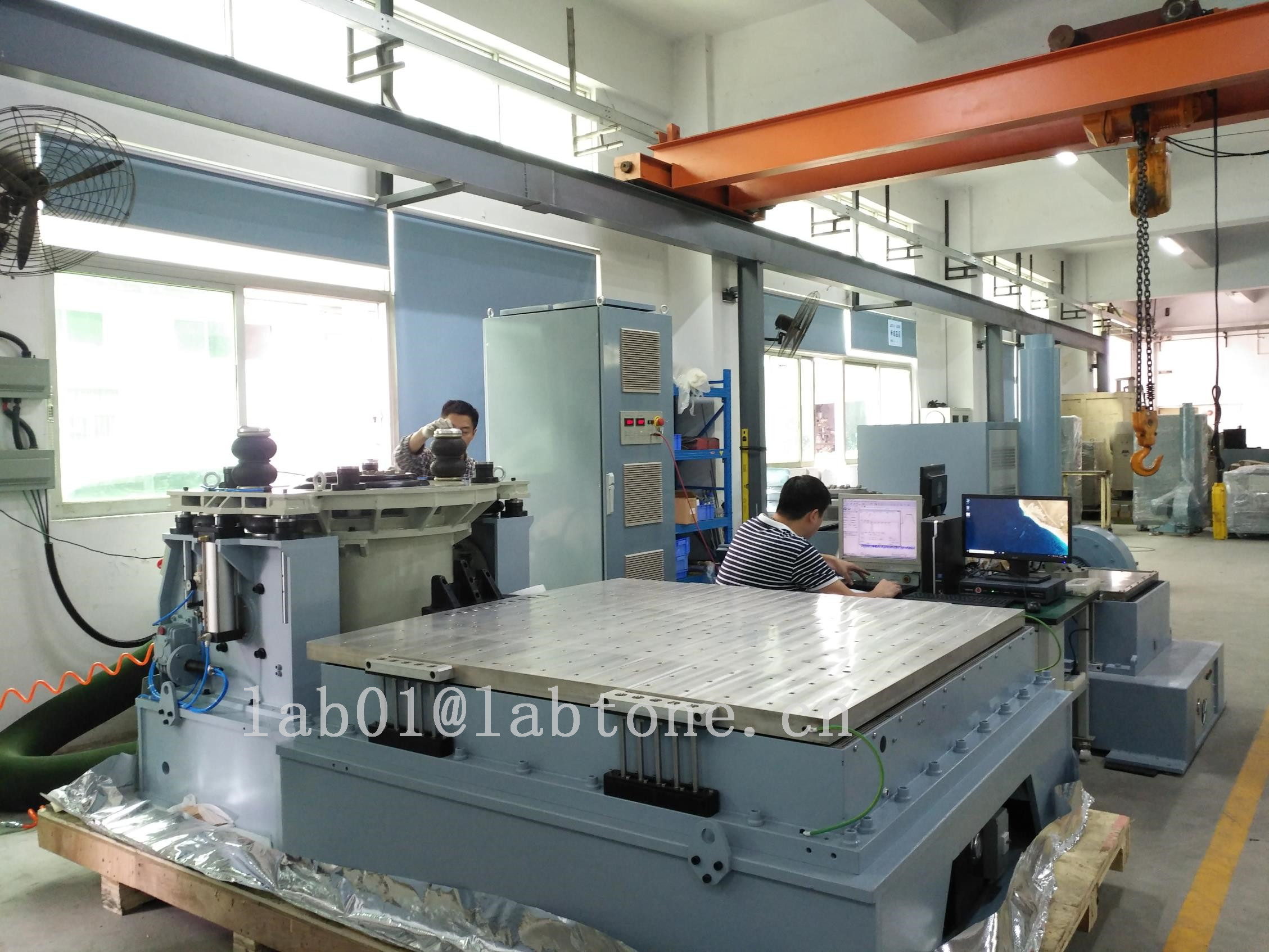

Detailed Pictures:
