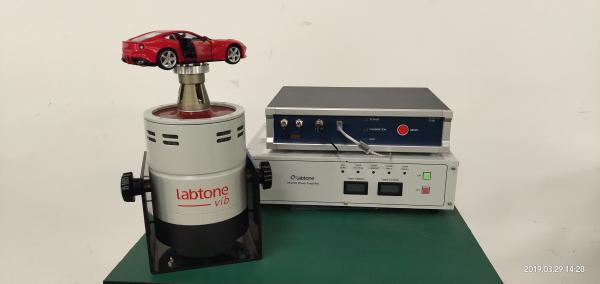

Compact Vibration Tester Small Vibration Machine Laboratory Vibration Device​

Introduction:

With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Features:

• Apply to high precision vibration meter calibration, mechanical impedance test, vibration analysis of the vibration source
• Apply to various of sensor, electronic, electric machines and other small lightweight vibration test .
• Apply to the basic test of vibration engineering education equipment, etc.

Technical Specifications:

Model: ET10

Rated Sine Exiting Force: 10kg.f(100N)

Rated Random Exiting Force: 10kg.f(100N)

Frequency Range: 5-10000Hz

Max. Acceleration: 35G

Max. Amplitude: 10 mm

Max. Velocity: 1.5cm/s

Armature Mass: 1kg

Machine Dimension: 184 x 95 x 188 (LxWx H) mm

Cooling Type: Air Cooled

Power Amplifier: PAS501

Rated Power: 500VA

Max. Voltage: 45V

Max. Current: 10A

FrequencyRange:DC~20k

Size: 430 x 260 x 84 mm

Electrical Supply: Power AC220V ±10% 50Hz
