ISTA 2A and ISTA 6A Amazon Electrodynamic Vibration Test Machine

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	EV320
Certification :	CE,ISO
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

ISTA 2A and ISTA 6A Amazon Electrodynamic Vibration Test Machine

ISTA 2A and ISTA 6A Amazon Electrodynamic Vibration Test Machine

Electrodynamic Vibration Test Machine:

A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection

Vibration testing system Applications:
automotive,motorcycle, electronics,aerospace,vessel,telecommunication,optoelectronics ,instrument etc

Electrodynamic Vibration Test Table Specification:

Shaker Specifications A20S34
Peak Sine (Pk)		2400Kg.f peak (24KN)
Random (RMS)		2200Kg.f rms (22KN) @ISO5344
Shock (Pk)		4400Kg.f peak (44KN) @6ms
Usable Frequency		DC～3000Hz
Maximum Displacement (p-p)		76mm (3inch)
Max. velocity		2m/s
Max. acceleration		Sine:100G (980 m/s²)；Random: 60G (588 m/s²)
Vertical Load Support		300KG
Body Suspension Natural Frequency (Thrust Axis)		Less than 2.5 Hz
Armature Diameter		Ф336 mm
Armature Weight		About 24kg
Fundamental Resonance Frequency (Bare table)		2,600 Hz (nom.) +/- 5%
Load Attachment Points (Standard)		21stainless steel M10 Inserts
Stray Flux Density		＜10gauss
Allowable partial force		500.N.M
Shaker dimensions		1190mmL×860mmD×1060mmH
Weight of Shaker		About 1800Kg

Model	EV103	EV203	EV106	EV206	EV210	EV220
Frequency(Hz)	2-4000	2-2500	2-3000	2-3000	2-3000	2-2500
Max Exiting Force(kg.f)	300	300	600	600	1000	2000
Max. Displacement (mmp-p)	25	38	25	50	50	50
Max. Acceleration(g)	100	100	100	100	100	100
Max. Velocity(cm/s)	200	120	180	200	200	200
Payload(kg)	110	120	200	200	300	400
Armature Mass(kg)	3	3	6	6	10	20
Armature Diameter(mm)	φ150	φ150	φ200	φ200	φ240	φ320
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	460	460	720	920	1100	1600
Vibration Generator Dimension LWH(MM)	750560670	750555670	800600710	800600710	845685840	12008701100
Power Amplifier	Amp3k	Amp3k	Amp6k	Amp6k	Amp12k	Amp22k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	250	250	320	320	350	500
Power Amplifier Dimension LWH(MM)	8005501250
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	8	9	18	20	25	35

Electrodynamic Vibration Test Table Features

Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
U-type spring ,rollers and linear bearing for strong resistance of deflecting load
Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
Able to complete sine ,random , impact environmental tests
This system requires voltage fluctuation, ≤±10%
This system requires Grounding resistance, ≤4Ω
High reliability, especially suitable for long-time operation

Electrodynamic Vibration Test Table Head Expanders

Size(mm): 300 x 300-1500x1500 or customized

Material: Aluminium /Magnesium

The expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping and minimizes the amplification factor of high-frequency resonance.

Electrodynamic Vibration Test Table Fixture / Cube

Material: Aluminium /Magnesium
According to the customer's actual demand, we can offer different shapes of the fixture, such as three-dimensional square, L and T shape.

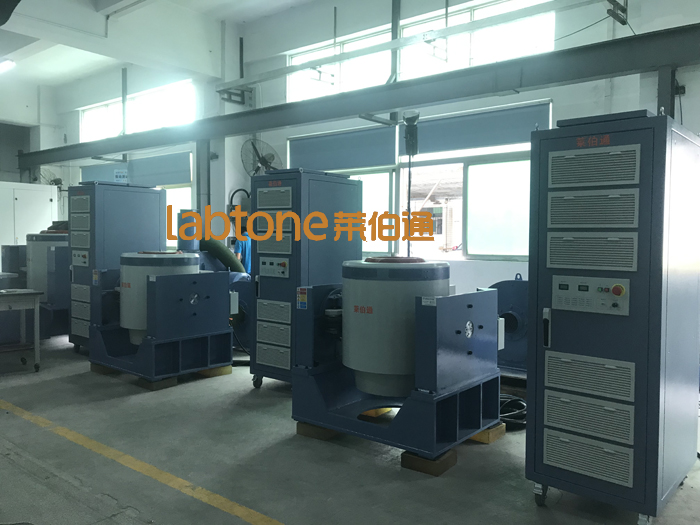

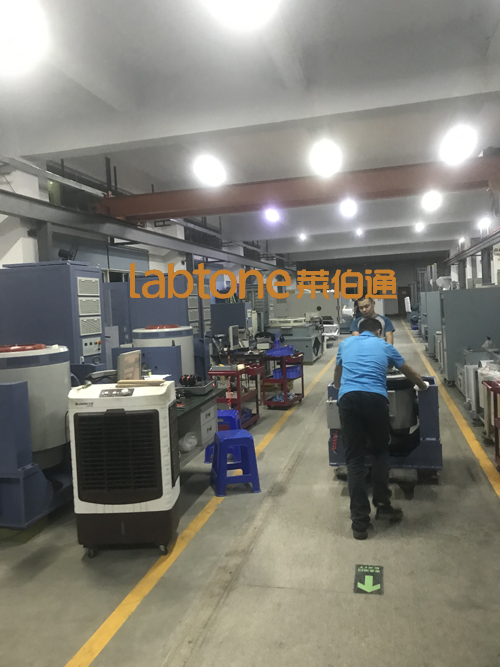

Workshop
