SKM800 Bump Test Machine For Repeated Bump Testing Of Components And Electronic

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	SKM800
Certification :	CE, ISO
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	45 Sets / Month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

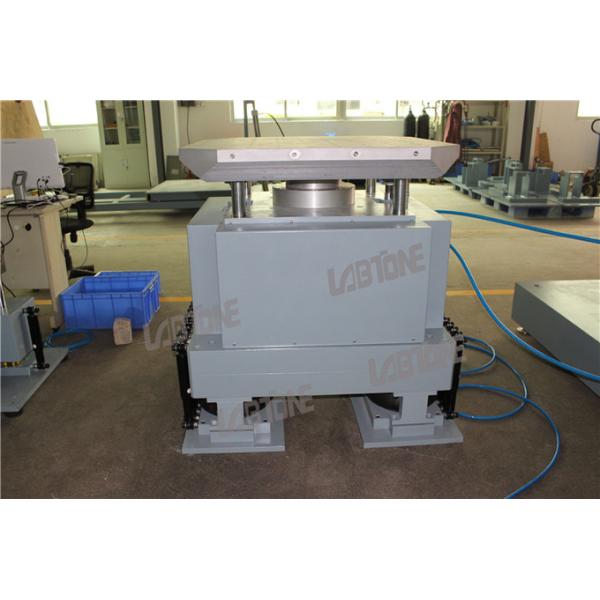

SKM800 Bump Test Machine For Repeated Bump Testing Of Components And Electronic

Introduction

Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipmentand other electronic electrician products during transport or using which may be subjected to repeated shocks.

SKM500 provides high quality shock pulse capability with the added benefit of a must faster cycle time up to 120 shock impacts per minute. SKM500 Shock Test System can generate high energy impacts with velocity changes up to 6.8m/s.

Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications

Model	SKM500	SKM700	SKM800	SKM1000
Table size(mm)	500*700	700*800	800*800	1000*1000
Payload(kg)	50	100	200	500
Wave form	Half sine pulse
Acceleration range(G)	5-120	5-100	5-100	5-80
Pluse duration(ms)	6--18
Bump repetition frequency	1-120	1-120	1-120	1-80
Drop height range	5-120mm	5-120mm	5-120mm	5-180mm
Max velocity variation	2.2m/s	2.2m/s	2.6m/s	2.8m/s
Machine dimension(mm)	750660880	900900800	900960800	12001150860
Machine weight(kg)	1000	1260	2160	3660
Power & Air supply	AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder
Standards	GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc

Customer Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.
