100kg Payload Mechanical Simulate Transportation Shaker For Product With Package Vibration Testing

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	YST100
Certification :	CE, ISO
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	15 Sets Per Month
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

100kg Payload Mechanical Simulate Transportation Shaker For Product With Package Vibration Testing

Description and Application

Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.

YST series vibration shakers apply electric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes

Features

Precise digital display for the vibration frequency.
Synchronous low noise wide belt drive mechanism.
Guide Rail type fixture for specimen, easy to operate.
Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
Rotational Vibration method complies with international test standard.
Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Operating mode

Specifications

Model	YST100	YST200	YST500	YST1000	YST2000
Max Payload(kg)	100	200	500	1000	2000
Table Size(mm)	1000x1200	1200x1200	1200x1500	1500x1500	1500x1500
Frequency Range	2~5Hz(120~300)RPM
Displacement	25.4mm Fixed
Test Motions	Rotary (Synchronous)
Power Supply	AC220V±10% 50Hz		3-phase 380V±10% 50Hz

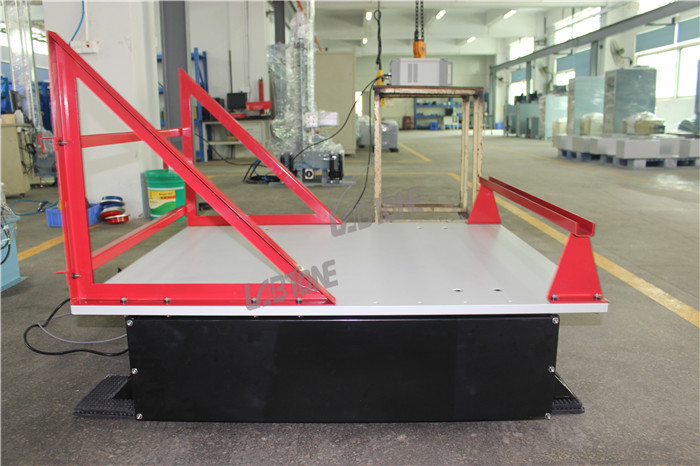

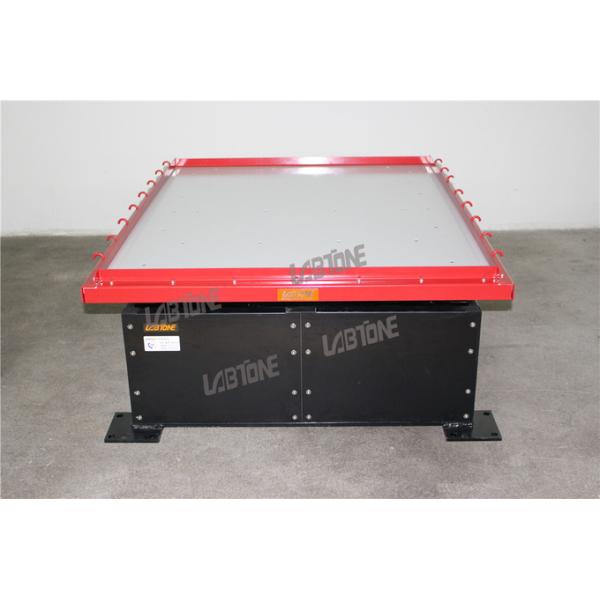

Detailed Picture

Vertical Mechanical Shaker Table For Vibration Test With ISTA / ASTM / TAPPI Standards 1
