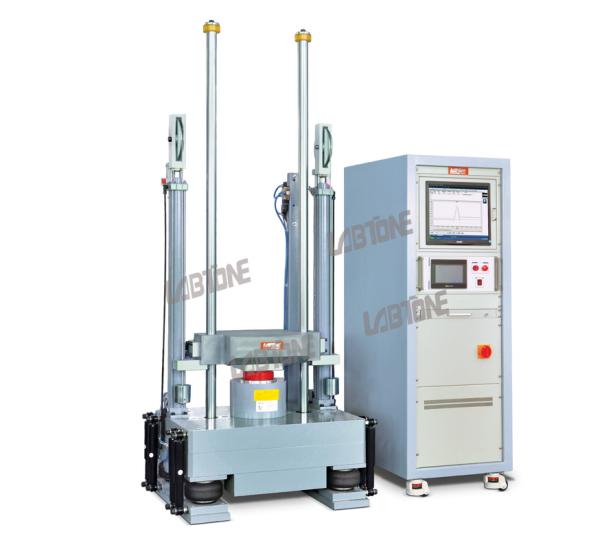

500g Acceleration Shock Testing System With Half Sinusoidal Wave And Max Payload 500kg

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	SKT500
Certification :	CE,ISO
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	15 Sets Per Month
Delivery Time :	30-35 working days

Add to Cart

Product Details
Company Profile

500g Acceleration Shock Testing System With Half Sinusoidal Wave And Max Payload 500kg

Basic Introduction To Impact Testing

Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pilse or company's internal standards, we can provide the most advanced shock test system to meet your application requirements.

Shock test equipment application include aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.

By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.

Features

Convenient touch screen operation.
Complete safety protection system.
Utilize pneumatically/hydraulically combined booster and braking system to prevent multiple impact.
With air spring shock absorber and hydraulic shock damping mechanism, there will be no impact on the surrounding and no foundation requirement.

Specifications

Model		SKT50	SKT100	SKT200	SKT300	SKT500	SKT1000	SKT1500
Table size (cm)		40 x 40	50 x 60	70 x 80	100 x 100	120 x 120	150 x 150	200 x 200
Maximum Specimen Weight(Kg)		50	100	200	300	500	1000	1500
Max acceleration(G)	half sine	600	600	600	500	500	300	300
	saw-tooth waveform	100	100	100	100	100	100	100
	square	100	100	100	60	50	50	50
Pulse Duration (ms)	half sine	30~1	30~2	30~2	20~3	20~3	20~3	20~3
	saw-tooth waveform	18~6	18~6	18~6	18~6	18~6	18~6	18~6
	square	12~6	12~6	12~6	12~6	12~6	12~6	12~6
Machine Dimension(cm)		82x90x195	120x105x245	130x120x260	150x130x260	200x160x300	230x180x310	250x250x310
Controller cabinet Dimension(cm)		W55 x D50 x H80
Machine Weight(Kg)		1050	2000	3200	4200	8500	15500	21500
Power supply		3-phase AC380V 50/60Hz 0.5~0.8MPa
Conforming standards		GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

FAQ

1. Peak acceleration and pulse duration can perform?

5g 30ms; 15g 11ms; 30g 18ms; 50g 6ms; 50g 11ms; 50g 3ms; 100g 6ms; 200g 6ms; 200g 3ms; 500g 1ms etc.

2. How do you control shakers?

If we're looking for resonances in the product we're testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially programmed computer.

3. The purpose of test?

Evaluate the product's structural integrity and functional stability under non-repetitive strong impact conditions during use.
Evaluate the fragility of the outer packaging of the product to protect the structural and functional integrity of the product during transportation.
When the product is installed on a platform where a collision may occur, it is necessary to assess and test the strength (fracture), rigidity (deformation) of the device used to fix the product on the platform, and the impact on the product.
Evaluate the impact of possible throw, drop, and free fall on product performance during loading and unloading, transportation or installation, and debugging.
